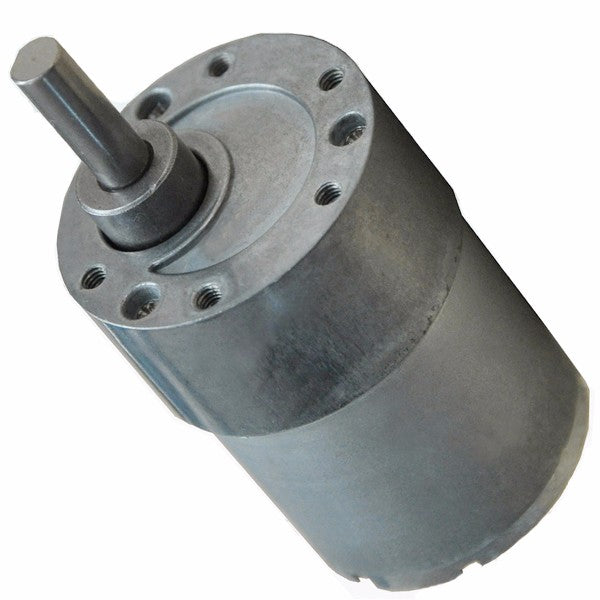

DC Motor 37GB-528 24V 10rpm

The DC Motor 37GB-528 24V 10rpm is a very slow DC gear motor from the 37GB series, combining a brushed DC motor with a 37 mm reduction gearbox. Powered at 24 V, its output shaft turns at 10 rpm, one full turn every 6 seconds. It is suited to slow positioning work such as solar trackers, turntables, valve actuators and feeders in 24 V machines.

DC Motor 37GB-528 24V 10rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 24 V DC
• Output speed: 10 rpm at the gearbox shaft at 24 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 24V 10rpm Applications

• Solar trackers and sun-following panels
• Turntables and display stands
• Valve, damper and gate actuators
• Slow conveyors and feeders
• Positioning drives in 24 V machines

What's in the Box

• 1 × DC Motor 37GB-528, 24 V 10 rpm

Tip: A DC motor has no built-in position control, so add limit switches or a potentiometer on the output as feedback. Drive it through a 24 V H-bridge driver such as a BTS7960 and mount it with a 37GB motor bracket.
