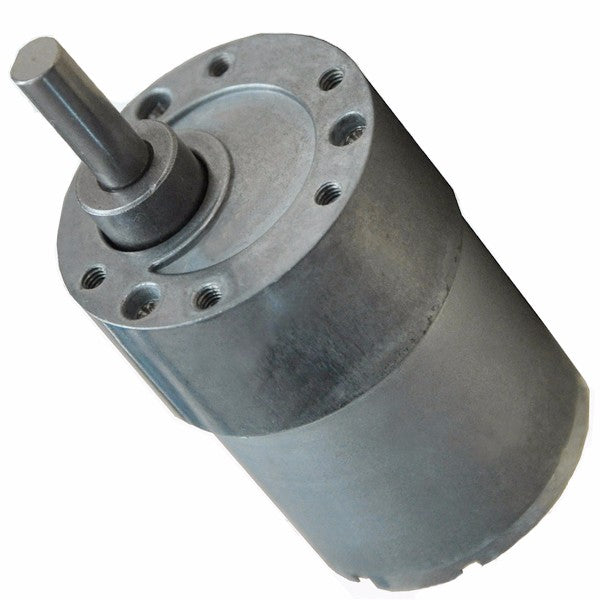

DC Motor 37GB-528 24V 150rpm

The DC Motor 37GB-528 24V 150rpm is a 24 V DC gear motor from the 37GB series, built from a brushed DC motor and a 37 mm reduction gearbox. Its output shaft turns at 150 rpm, two and a half turns per second, a balanced speed for moving robots and machines with useful torque. It fits mobile robots, conveyors, mixers and automation projects that run on a 24 V supply.

DC Motor 37GB-528 24V 150rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 24 V DC
• Output speed: 150 rpm at the gearbox shaft at 24 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 24V 150rpm Applications

• Drive wheels for robots and AGV models
• Conveyor belts and pulley drives
• Mixers and rotating mechanisms
• Sliding doors and gate models
• 24 V machine and automation builds

What's in the Box

• 1 × DC Motor 37GB-528, 24 V 150 rpm

Tip: A 24 V supply can be a mains adapter or two 12 V batteries in series. Use an H-bridge motor driver rated for 24 V and above the start-up current, such as a BTS7960 module, never a microcontroller pin.
