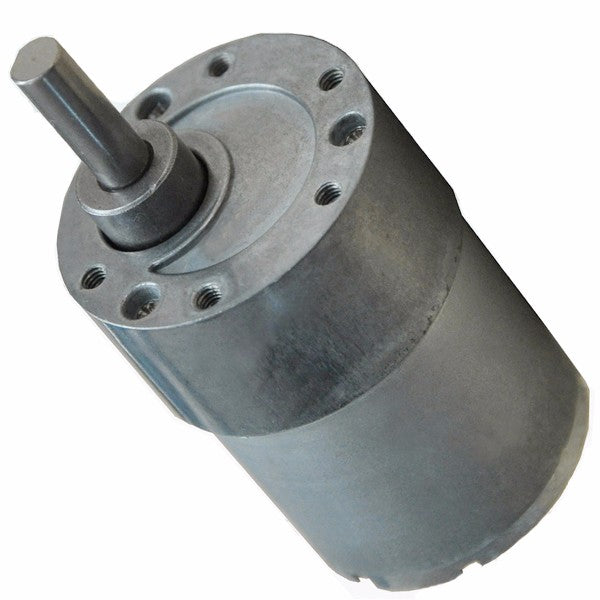

DC Motor 37GB-528 24V 200rpm

The DC Motor 37GB-528 24V 200rpm is a DC gear motor from the 37GB series, which pairs a brushed DC motor with a 37 mm gearbox. It runs from a 24 V supply and turns its output shaft at 200 rpm, a useful middle speed that balances movement and torque, so it suits robot drive wheels, conveyors, mixers and other machines that need steady rotation.

DC Motor 37GB-528 24V 200rpm Specifications

• Model: 37GB-528
• Rated voltage: 24 V DC
• Output speed: 200 rpm at the gearbox shaft
• Gearbox: 37 mm diameter (37GB series)
• Type: DC gear motor
• Direction: reversible by swapping the supply polarity

DC Motor 37GB-528 24V 200rpm Applications

• Drive wheels for robots and mobile platforms
• Conveyor belts and pulley drives
• Mixers, stirrers and rotating mechanisms
• DIY automation machines and 24 V systems

What's in the Box

• 1 × DC Motor 37GB-528, 24 V 200 rpm

Tip: Drive the motor through an H-bridge motor driver rated above its start-up (stall) current, such as a BTS7960 module, never straight from a microcontroller pin; PWM from the driver sets the speed. Mount it with a 37GB motor bracket, use a coupling that matches the shaft, and choose a 24 V supply that can deliver the start-up current.
