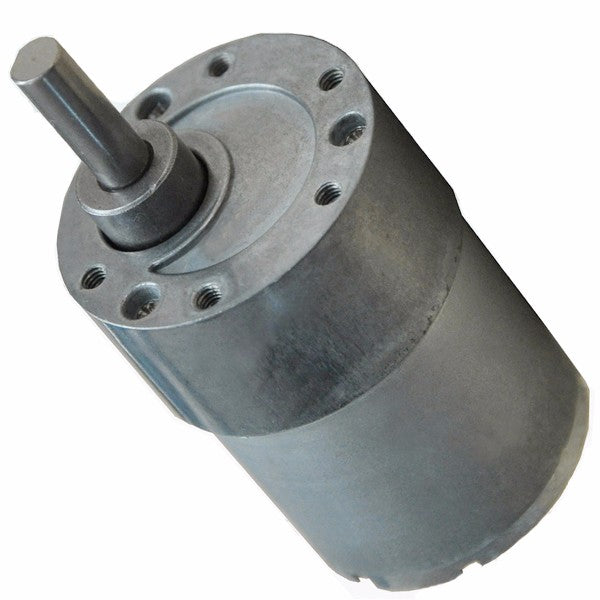

DC Motor 37GB-528 24V 300rpm

The DC Motor 37GB-528 24V 300rpm is a DC gear motor from the 37GB series, which pairs a brushed DC motor with a 37 mm reduction gearbox. It runs from a 24 V supply and turns its output shaft at 300 rpm, five turns per second. It suits robot drive wheels, conveyors, mixers and DIY machines that need quicker movement in 24 V systems, while the gearbox still gives more torque than a bare motor.

DC Motor 37GB-528 24V 300rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 24 V DC
• Output speed: 300 rpm at the gearbox shaft at 24 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 24V 300rpm Applications

• Drive wheels for faster robots and mobile platforms
• Conveyor belts and pulley drives
• Mixers, stirrers and spinning mechanisms
• Belt and lead-screw drives in DIY machines
• 24 V automation projects

What's in the Box

• 1 × DC Motor 37GB-528, 24 V 300 rpm

Tip: With a 65 mm wheel, 300 rpm works out to about 1 m/s. Drive the motor through an H-bridge driver that works at 24 V, such as a BTS7960 module, and use PWM from the driver to set the speed.
