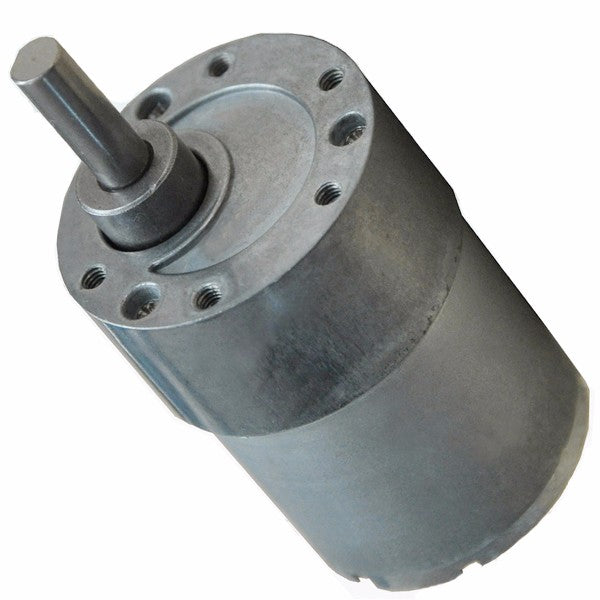

DC Motor 37GB-528 24V 60rpm

The DC Motor 37GB-528 24V 60rpm is a 24 V DC gear motor from the 37GB series, pairing a brushed DC motor with a 37 mm reduction gearbox. Its output shaft turns at 60 rpm, one full turn per second, giving a slow and steady drive with plenty of torque from the gear reduction. Typical uses are winches, lifts, conveyors, turntables and gate openers in 24 V systems.

DC Motor 37GB-528 24V 60rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 24 V DC
• Output speed: 60 rpm at the gearbox shaft at 24 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 24V 60rpm Applications

• Winches, hoists and lifts
• Conveyor belts and feeders
• Turntables and rotating platforms
• Gate and door openers
• Heavier slow-moving robots

What's in the Box

• 1 × DC Motor 37GB-528, 24 V 60 rpm

Tip: Do not hold the motor stalled against a hard stop: the stall current heats the windings and strains the gears. Use limit switches at the end positions and a 24 V H-bridge driver such as a BTS7960.
