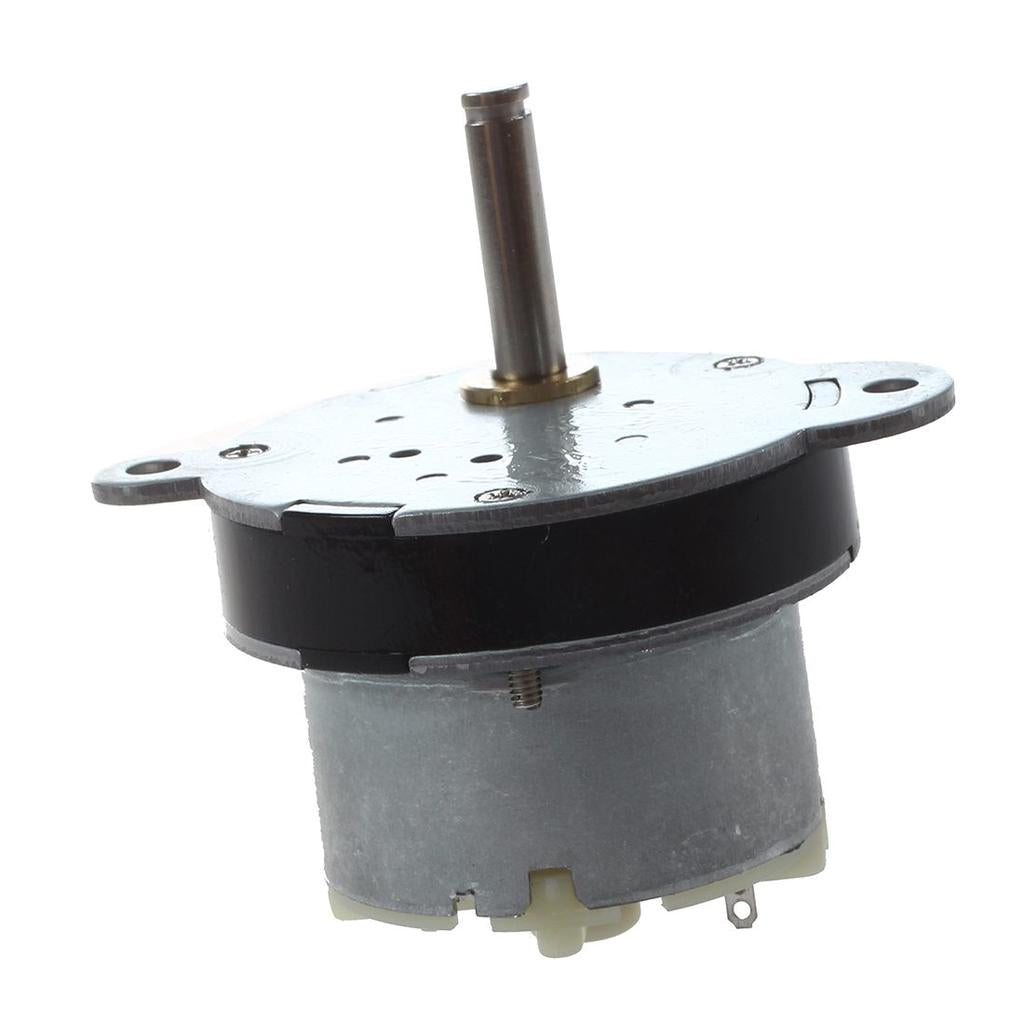

DC Motor 40GB-Circle 12V 7rpm

The DC Motor 40GB-Circle 12V 7rpm is a very slow DC gear motor from the 40GB series, Circle version with a round housing. Running from 12 V, its high-ratio gearbox turns the output shaft at just 7 rpm, about one turn every 8.5 seconds, with high torque for smooth, slow movement. It is well suited to solar trackers, rotating displays and slow actuators.

DC Motor 40GB-Circle 12V 7rpm Specifications

• Model: 40GB, Circle (round housing) version
• Rated voltage: 12 V DC
• Output speed: 7 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 40GB-Circle 12V 7rpm Applications

• Solar trackers
• Rotating product displays
• Time-lapse camera turntables
• Vent, damper and valve actuators
• Feeders and dosing mechanisms

What's in the Box

• 1 × DC Motor 40GB-Circle, 12 V 7 rpm

Tip: For simple constant rotation, connect it to a 12 V supply through a switch; for control from an Arduino or ESP32, use an H-bridge motor driver. Add limit switches where travel is limited, as the slow output is strong enough to damage parts if it stalls.
