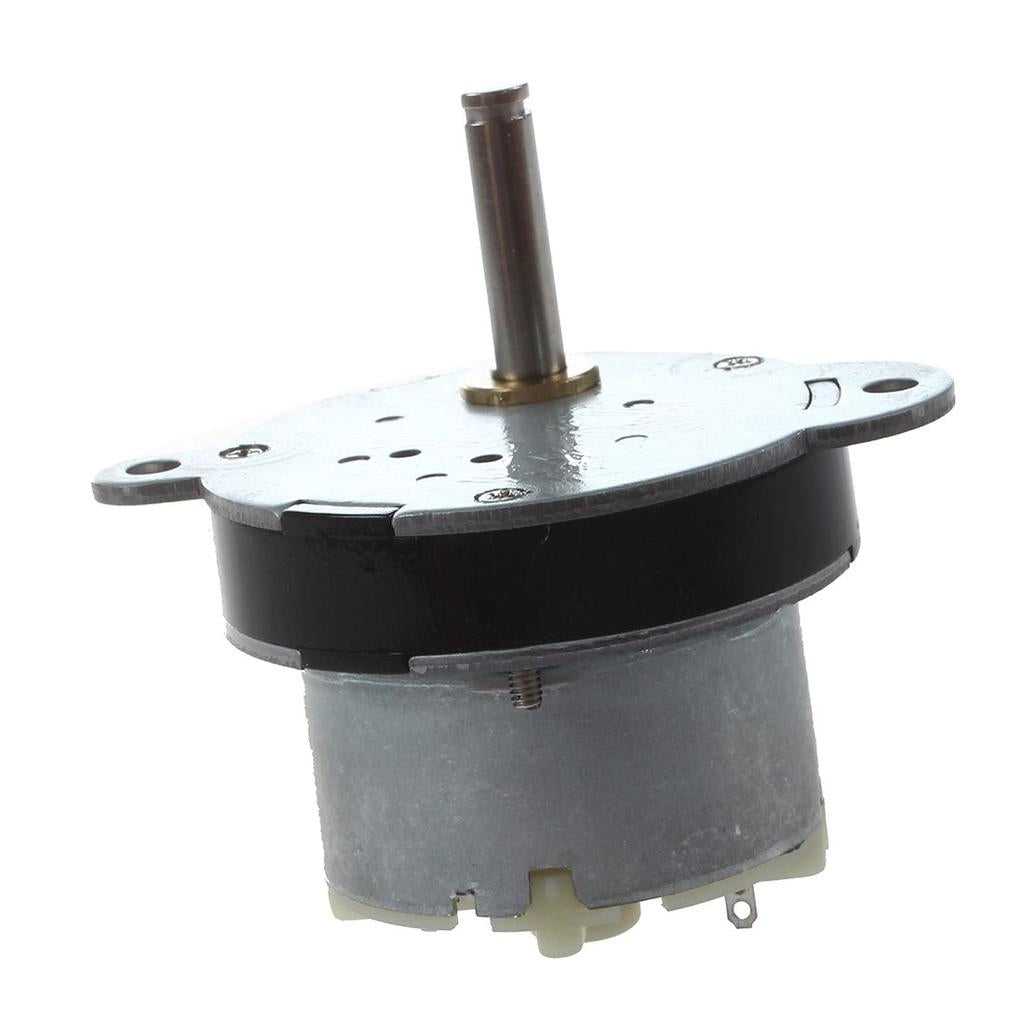

DC Motor 40GB-Circle 6V 100rpm

The DC Motor 40GB-Circle 6V 100rpm is a 6 V DC gear motor from the 40GB series, Circle version with a round housing. Its gearbox gives an output speed of 100 rpm, a useful speed for robot car wheels, small conveyors and moving models. The 6 V rating makes it easy to run from 4 × AA batteries or a 6 V battery pack in school and hobby projects.

DC Motor 40GB-Circle 6V 100rpm Specifications

• Model: 40GB, Circle (round housing) version
• Rated voltage: 6 V DC
• Output speed: 100 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 40GB-Circle 6V 100rpm Applications

• Robot car and rover wheels
• Small conveyors and belt drives
• School and STEM robotics
• Moving models and displays
• Battery-powered gadgets

What's in the Box

• 1 × DC Motor 40GB-Circle, 6 V 100 rpm

Tip: Use a motor driver rated above the motor's stall current. Keep in mind that an L298N module loses about 2 V, which is significant at 6 V, so a low-drop MOSFET driver gives better performance from the same battery.
