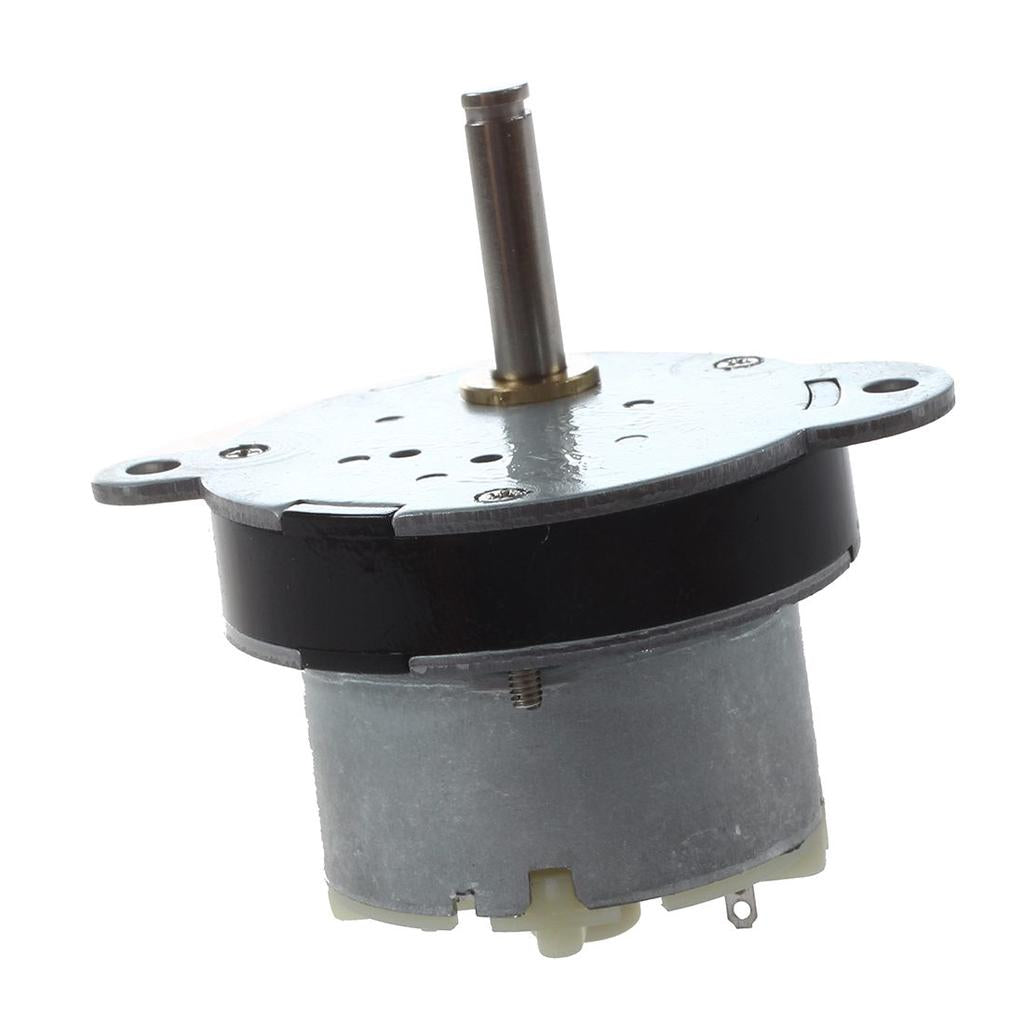

DC Motor 40GB-Double Ear 12V 130rpm

The DC Motor 40GB-Double Ear 12V 130rpm is a DC gear motor from the 40GB series, combining a DC motor with a built-in reduction gearbox. It runs from a 12 V supply and turns its output shaft at 130 rpm, while the double-ear housing gives two mounting ears for bolting it firmly to a frame or chassis. It is a good choice for robot wheels, conveyors and other mechanisms that need steady, moderate rotation with more torque than a bare motor.

DC Motor 40GB-Double Ear 12V 130rpm Specifications

• Model: 40GB, double-ear housing
• Rated voltage: 12 V DC
• Output speed: 130 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Mounting: two mounting ears on the housing
• Direction: reversible by swapping the supply polarity

DC Motor 40GB-Double Ear 12V 130rpm Applications

• Drive wheels for robot cars and mobile platforms
• Conveyor belts and pulley drives
• Winches and small lifting mechanisms
• Mixers, stirrers and rotating fixtures
• 12 V battery and solar projects

What's in the Box

• 1 × DC Motor 40GB-Double Ear, 12 V 130 rpm

Tip: Run the motor through an H-bridge motor driver rated above its start-up (stall) current, such as an L298N for lighter loads or a BTS7960 for heavier ones, and never straight from a microcontroller pin. Use the driver's PWM input to set the speed and bolt the motor down through both ears so it cannot twist under load.
