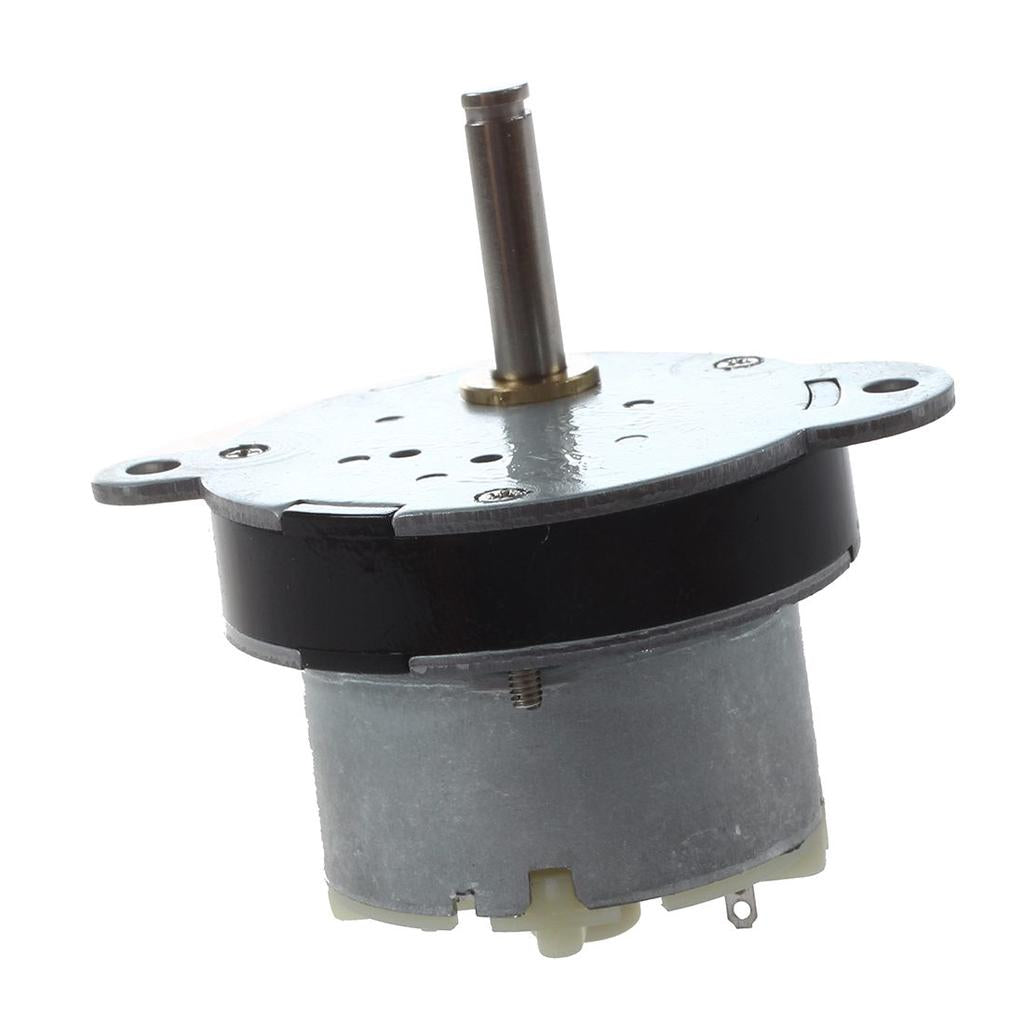

DC Motor 40GB-Double Ear 12V 200rpm

The DC Motor 40GB-Double Ear 12V 200rpm is a 12 V geared DC motor from the 40GB series with an output speed of 200 rpm. Its double-ear housing has two mounting ears, so you can screw it flat onto a chassis, bracket or frame without a separate motor clamp. The reduction gearbox gives the output shaft enough torque to drive wheels and rollers directly, which suits robot cars and small conveyors.

DC Motor 40GB-Double Ear 12V 200rpm Specifications

• Motor type: brushed DC gear motor
• Series: 40GB, double-ear mount
• Rated voltage: 12 V DC
• Output speed: 200 rpm at 12 V (as listed)
• Mounting: two mounting ears for screws
• Direction: reversible by swapping polarity

DC Motor 40GB-Double Ear 12V 200rpm Applications

• Robot car and rover drive wheels
• Conveyor belts and roller feeds
• Rotating platforms and mixers
• Engineering and robotics competitions

What's in the Box

• 1 × 40GB double-ear geared DC motor, 12 V 200 rpm

Tip: With an 80 mm wheel, 200 rpm gives about 0.8 m/s with no load. Use an H-bridge driver rated for the motor's stall current for speed and direction control from an Arduino or ESP32.
