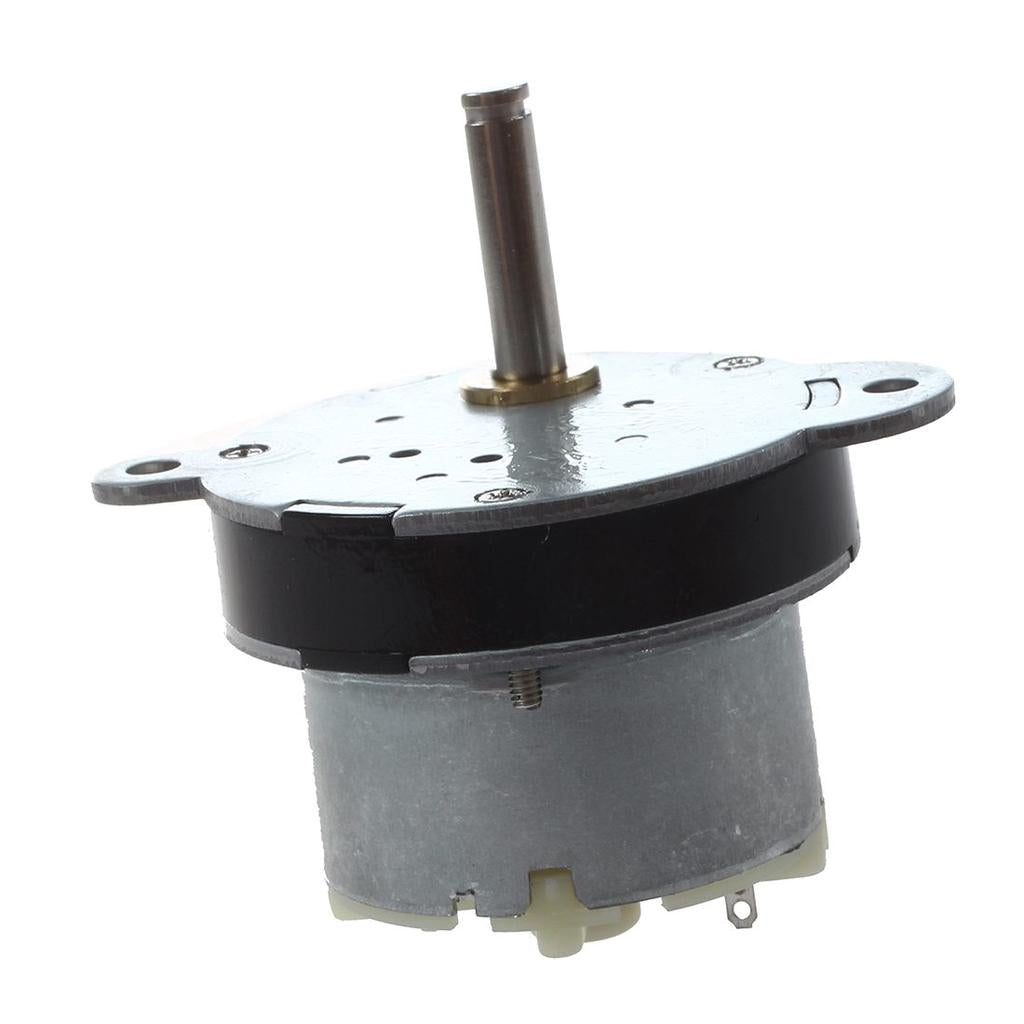

DC Motor 40GB-Double Ear 12V 3rpm

The DC Motor 40GB-Double Ear 12V 3rpm is an ultra-slow DC gear motor from the 40GB series. It runs from a 12 V supply and its high-ratio gearbox turns the output shaft at only 3 rpm, one full turn every 20 seconds, which makes it well suited to smooth, slow rotation with plenty of torque. Two mounting ears on the housing let you bolt it securely to a base or frame.

DC Motor 40GB-Double Ear 12V 3rpm Specifications

• Model: 40GB, double-ear housing
• Rated voltage: 12 V DC
• Output speed: 3 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Mounting: two mounting ears on the housing
• Direction: reversible by swapping the supply polarity

DC Motor 40GB-Double Ear 12V 3rpm Applications

• Rotating display stands and shop showcases
• Solar panel trackers
• Time-lapse and product photography turntables
• Slow-opening vents, dampers and valves
• Kinetic art and model-making projects

What's in the Box

• 1 × DC Motor 40GB-Double Ear, 12 V 3 rpm

Tip: For constant slow rotation, a regulated 12 V supply and a switch are enough; for speed or direction control, use an H-bridge driver such as an L298N. Fit end-stop switches on any mechanism with limited travel, because at 3 rpm the gearbox output is very strong and can damage parts if it stalls.
