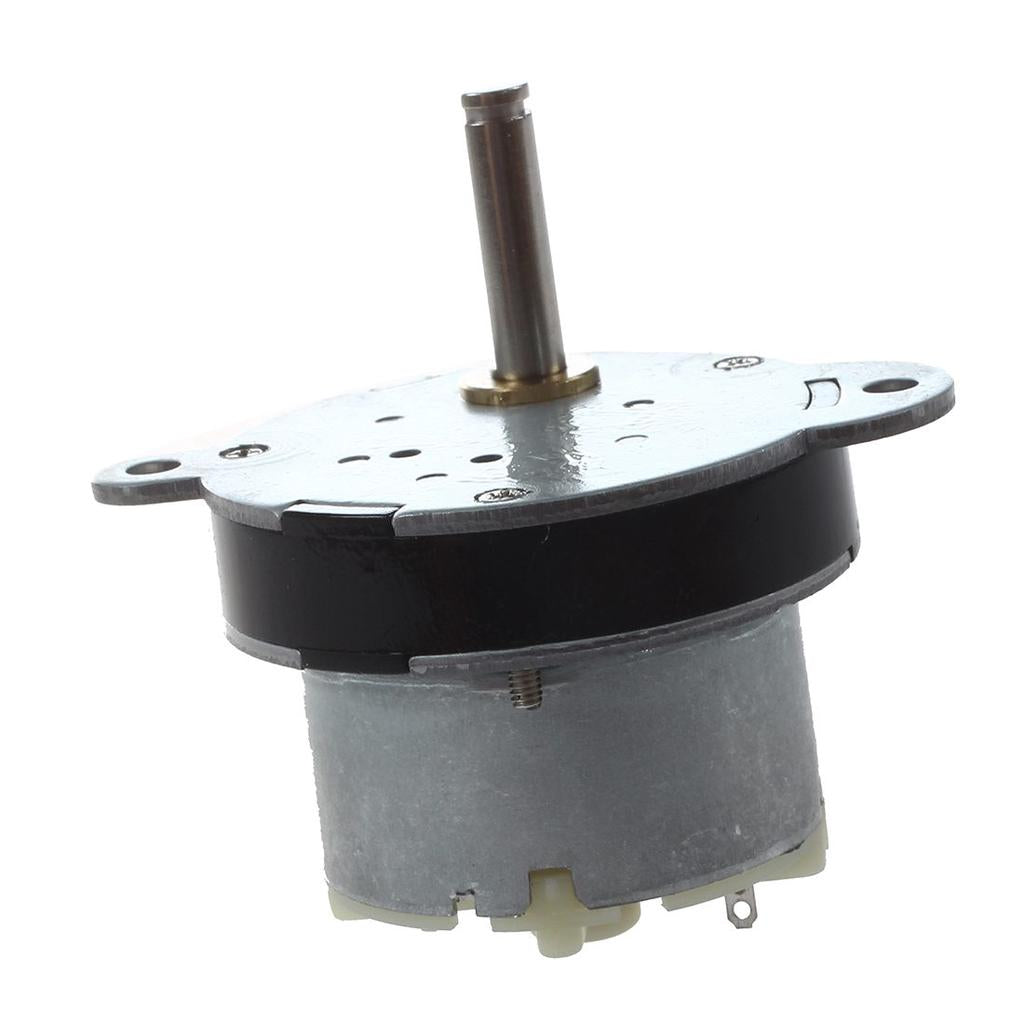

DC Motor 40GB-Double Ear 12V 50rpm

The DC Motor 40GB-Double Ear 12V 50rpm is a 12 V DC gear motor from the 40GB series, made of a DC motor and a reduction gearbox in one unit. Its output shaft turns at a slow 50 rpm, and the higher gear reduction gives more turning force than the faster versions, which suits winches, lifts, turntables and slow robot drives. The double-ear housing has two mounting ears for fixing the motor securely to a frame.

DC Motor 40GB-Double Ear 12V 50rpm Specifications

• Model: 40GB, double-ear housing
• Rated voltage: 12 V DC
• Output speed: 50 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Mounting: two mounting ears on the housing
• Direction: reversible by swapping the supply polarity

DC Motor 40GB-Double Ear 12V 50rpm Applications

• Winches, hoists and small lifting mechanisms
• Turntables and rotating platforms
• Slow drive wheels for heavy robots and carts
• Automatic doors, curtains and sliding gates
• Rotisseries and slow stirring mechanisms

What's in the Box

• 1 × DC Motor 40GB-Double Ear, 12 V 50 rpm

Tip: Control speed and direction with an H-bridge motor driver rated above the motor's stall current, such as a BTS7960 module, never directly from an Arduino or ESP32 pin. Add limit switches to lifting or door mechanisms so the motor stops at the end of travel instead of stalling.
