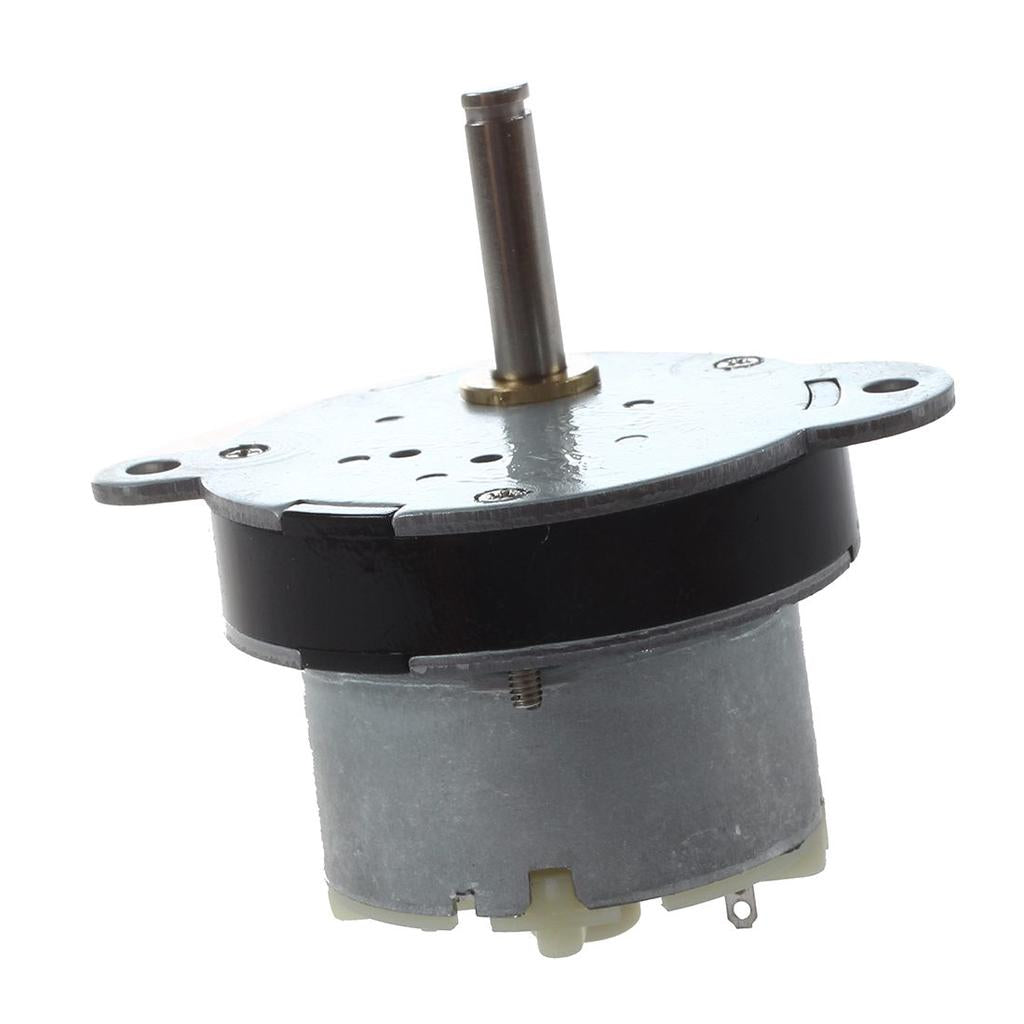

DC Motor 40GB-Double Ear 6V 100rpm

The DC Motor 40GB-Double Ear 6V 100rpm is a 6 V DC gear motor from the 40GB series, with the motor and reduction gearbox built into one unit. It turns its output shaft at 100 rpm, a practical speed for robot car wheels, conveyors and moving models. Because it runs from 6 V, it works well with battery packs such as 4 × AA cells or a 6 V lead-acid battery, and the double-ear housing gives two mounting ears for easy fixing.

DC Motor 40GB-Double Ear 6V 100rpm Specifications

• Model: 40GB, double-ear housing
• Rated voltage: 6 V DC
• Output speed: 100 rpm at the gearbox shaft
• Type: DC gear motor (motor with reduction gearbox)
• Mounting: two mounting ears on the housing
• Direction: reversible by swapping the supply polarity

DC Motor 40GB-Double Ear 6V 100rpm Applications

• Robot car and rover wheels
• Small conveyor belts and pulley drives
• School and STEM robotics projects
• Moving models and kinetic displays
• Battery-powered automation

What's in the Box

• 1 × DC Motor 40GB-Double Ear, 6 V 100 rpm

Tip: Use an H-bridge motor driver rated above the motor's stall current to control speed and direction. Note that an L298N module drops about 2 V, which is a lot on a 6 V motor, so a MOSFET-based driver usually gives better speed from the same battery.
