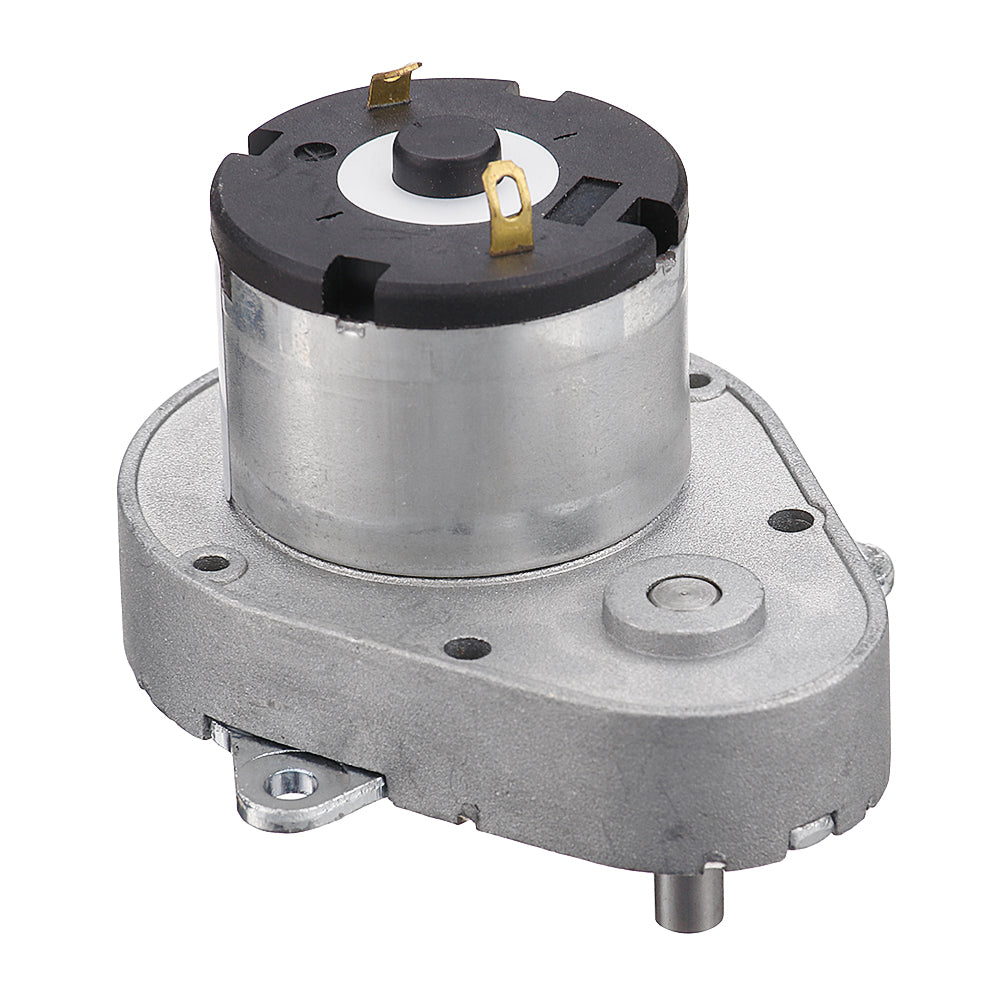

DC Motor 48GB 12V 100rpm

The DC Motor 48GB 12V 100rpm is a geared DC motor rated for 12 V with an output speed of 100 rpm. Its reduction gearbox slows the motor down and multiplies the torque, so the shaft turns slowly and strongly, ready to drive wheels, turntables, winches and other mechanisms that need steady, controlled rotation from a 12 V battery or power supply.

DC Motor 48GB 12V 100rpm Specifications

• Model: 48GB
• Rated voltage: 12 V DC
• Output speed: 100 rpm at the gearbox shaft
• Type: DC gear motor
• Direction: reversible by swapping the supply polarity

DC Motor 48GB 12V 100rpm Applications

• Drive wheels for heavier robots and carts
• Turntables and rotating displays
• Winches, lifts and sliding mechanisms
• Automatic doors and curtains
• 12 V battery and solar projects

What's in the Box

• 1 × DC Motor 48GB, 12 V 100 rpm

Tip: Drive the motor through an H-bridge motor driver rated above its stall current, such as a BTS7960 module for heavier loads, never directly from a microcontroller pin. Use PWM to adjust the speed, and choose a coupling or hub that matches the output shaft.
