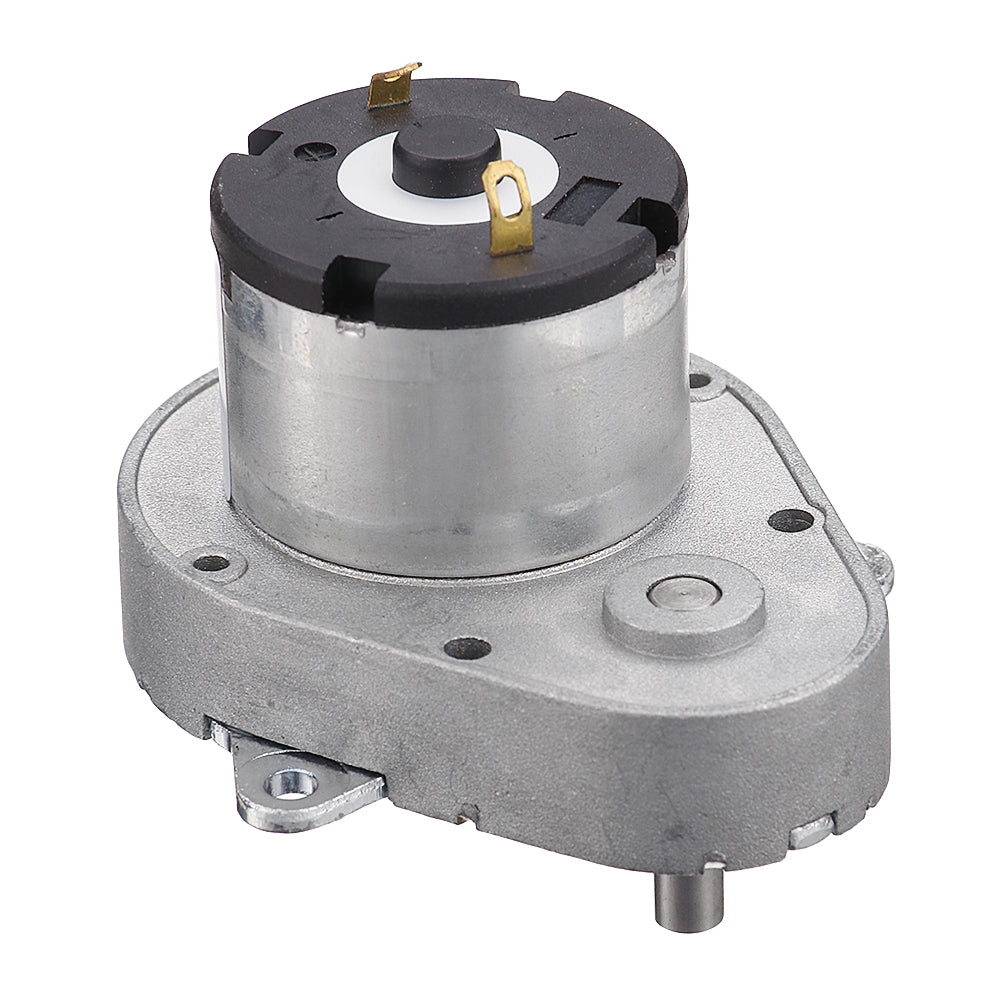

DC Motor 48GB 12V 300rpm

The DC Motor 48GB 12V 300rpm is a 12 V geared DC motor from the 48GB series with an output speed of 300 rpm, about 5 turns per second. A built-in reduction gearbox lowers the motor speed and raises the torque, so the output shaft can drive wheels, rollers and other mechanisms directly. This speed suits robot cars and small conveyors that need to move at a steady pace.

DC Motor 48GB 12V 300rpm Specifications

• Motor type: brushed DC gear motor
• Series: 48GB
• Rated voltage: 12 V DC
• Output speed: 300 rpm at 12 V (as listed)
• Direction: reversible by swapping polarity
• Speed control: PWM or lower supply voltage

DC Motor 48GB 12V 300rpm Applications

• Robot car and rover wheels
• Small conveyor belts and rollers
• Mixers, stirrers and rotating mechanisms
• Engineering and STEM projects

What's in the Box

• 1 × 48GB geared DC motor, 12 V 300 rpm

Tip: With a 65 mm wheel, 300 rpm gives roughly 1 m/s with no load, and the speed drops under load. Use an H-bridge motor driver rated for the motor's stall current to run it forward and reverse from an Arduino or ESP32.
