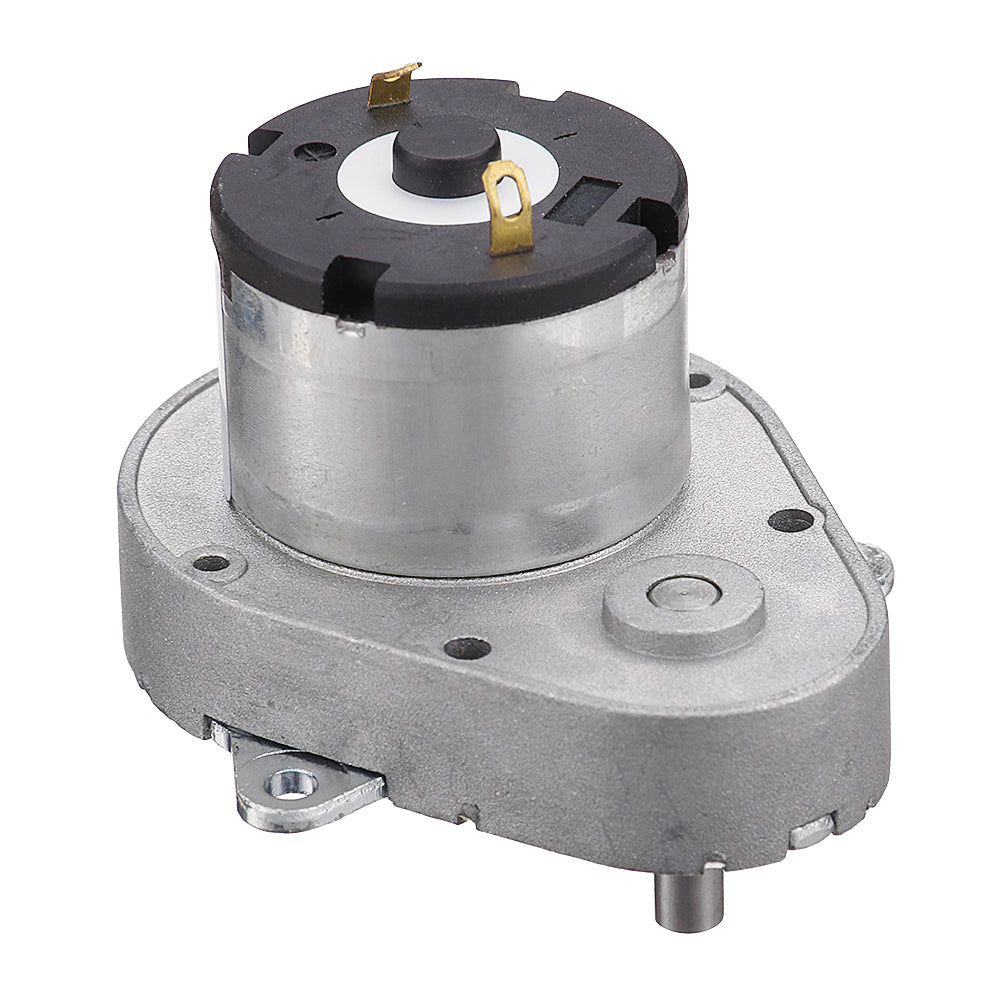

DC Motor 48GB 12V 30rpm

The DC Motor 48GB 12V 30rpm is a slow-speed 12 V geared DC motor from the 48GB series. Its output shaft turns at 30 rpm, one full turn every 2 seconds, thanks to a high-ratio reduction gearbox. The lower speed brings more output torque than the faster versions in the same series, which suits mechanisms that must move a load slowly and steadily.

DC Motor 48GB 12V 30rpm Specifications

• Motor type: brushed DC gear motor
• Series: 48GB
• Rated voltage: 12 V DC
• Output speed: 30 rpm at 12 V (as listed)
• Direction: reversible by swapping polarity
• Speed control: PWM or lower supply voltage

DC Motor 48GB 12V 30rpm Applications

• Small winches and lifting mechanisms
• Automatic feeders and dispensers
• Rotating displays and signs
• Slow conveyors and mixers

What's in the Box

• 1 × 48GB geared DC motor, 12 V 30 rpm

Tip: Fit limit switches if the motor drives something with end stops, such as a lift or a door, so it does not stall against the stop. A relay module is enough for simple on/off control; use an H-bridge driver if you need both directions.
