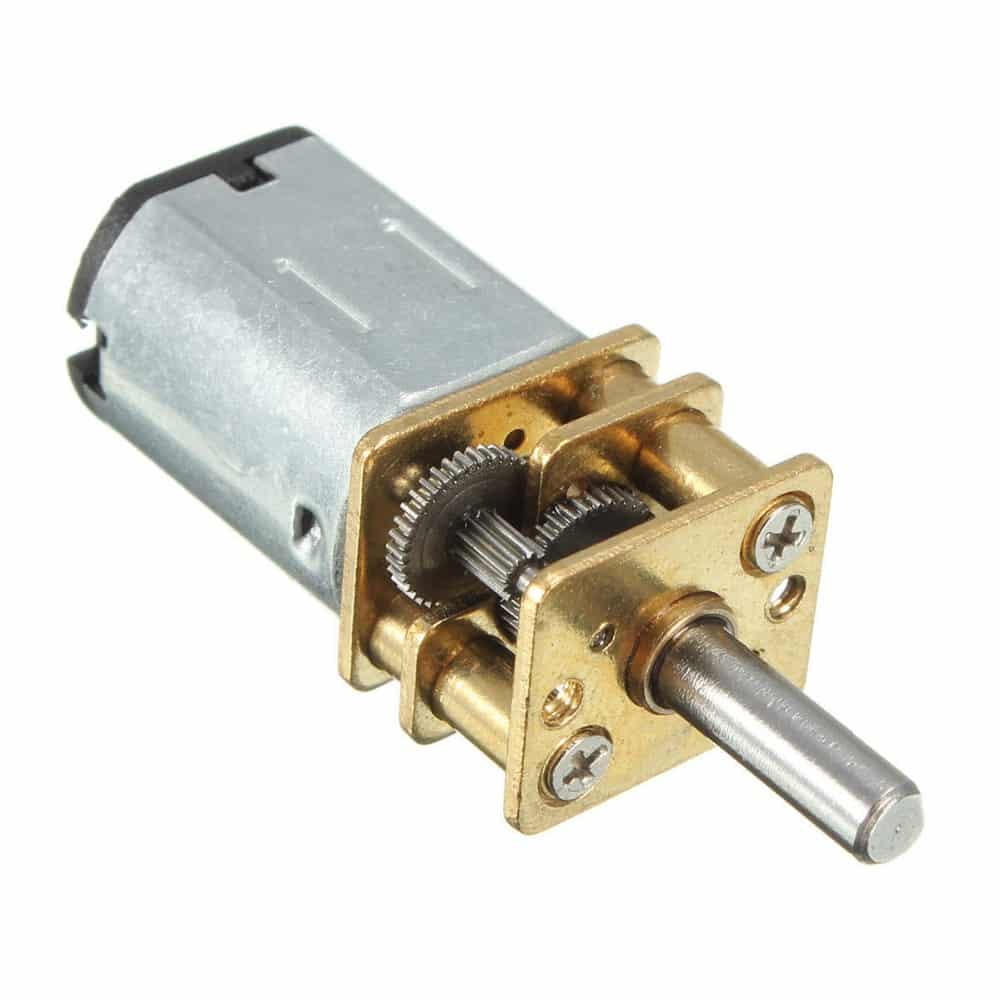

DC12V N20 Micro Metal Gear Motor Pololu 600rpm 1:50

The DC12V N20 Micro Metal Gear Motor is a small 12 V DC motor with a 1:50 metal gearbox and an output speed of 600 rpm. The N20 size, the same format as the popular Pololu micro metal gearmotors, is compact and light, so it is widely used to drive the wheels of small robots, line followers and moving mechanisms where space is tight.

DC12V N20 Micro Metal Gear Motor Specifications

• Rated voltage: 12 V DC
• Output speed: 600 rpm at 12 V
• Gear ratio: 1:50
• Gearbox: metal spur gears
• Size: N20 micro motor format (about 12 × 10 mm cross-section)
• Output shaft: 3 mm D-shaft

DC12V N20 Micro Metal Gear Motor Applications

• Drive wheels for mini robots, line followers and sumo bots
• Small conveyor belts and moving models
• Camera sliders, pan mechanisms and small actuators
• WRO, robotics clubs and STEM projects

What's in the Box

• 1 × 12 V N20 micro metal gear motor, 600 rpm, 1:50

Tip: Never power the motor straight from an Arduino pin; use a motor driver such as the TB6612FNG, DRV8833 or L298N with a 12 V supply. It also runs at lower voltages, but it will turn more slowly.
