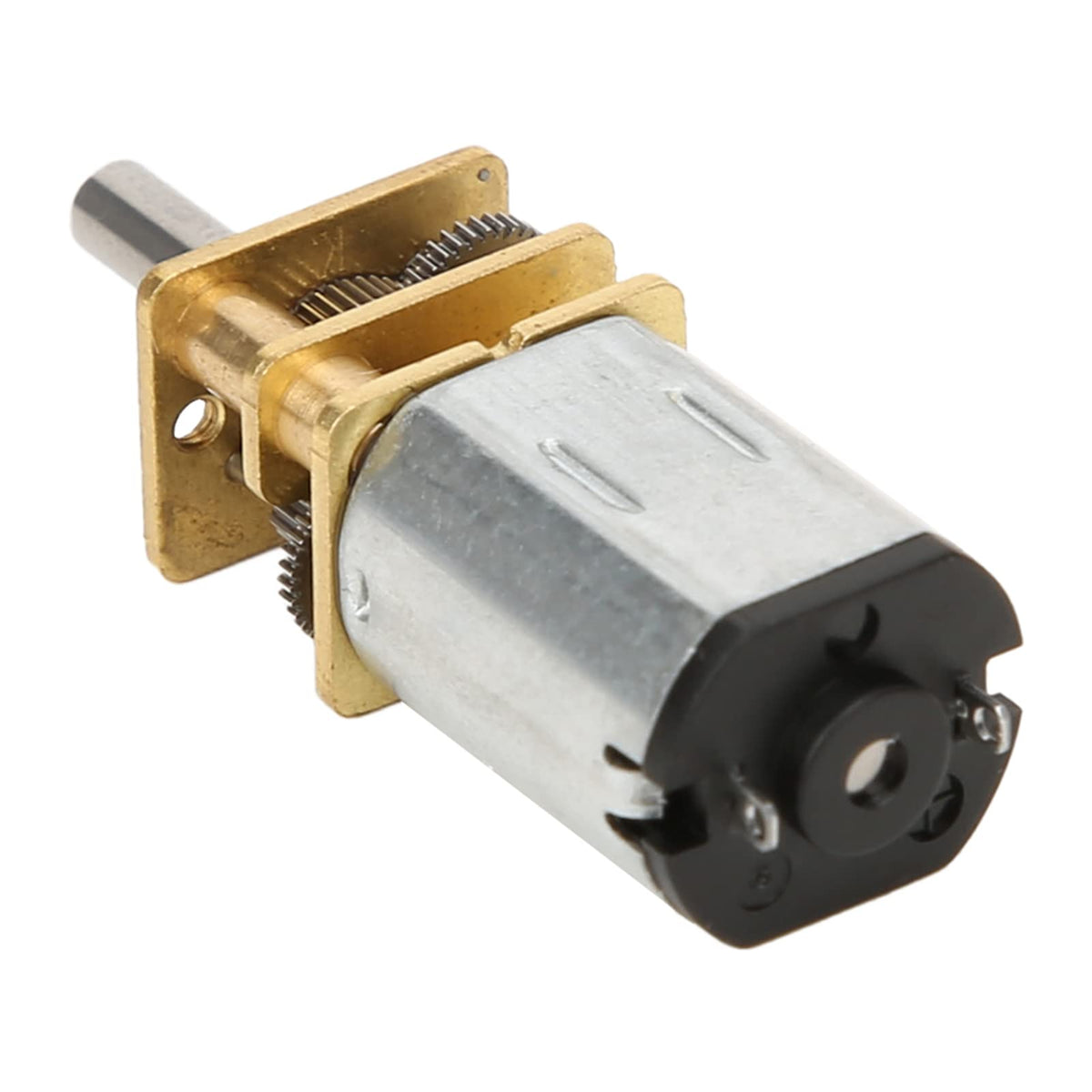

GA12-N20 3V 1000RPM 10:0 Micro DC Metal Gear Reduction Motor

The GA12-N20 3V 1000RPM micro DC metal gear reduction motor is a compact N20-size brushed motor with a 12 mm metal gearbox, rated for 3 V and about 1000 RPM at the output shaft. Its small size and fast output speed make it a good fit for mini robots, small wheeled cars, camera sliders and other projects where space is tight.

GA12-N20 3V 1000RPM Specifications

• Motor type: brushed DC motor with a metal gear reduction gearbox
• Rated voltage: 3 V DC
• Output speed: about 1000 RPM at 3 V
• Gearbox size: 12 mm wide (GA12 / N20 format)
• Output shaft: 3 mm D-shaped shaft
• Connections: 2 motor terminals

GA12-N20 3V 1000RPM Applications

• Mini robots and line-following cars
• Small wheeled vehicles and RC models
• Electronic locks, valves and small actuators
• Camera sliders, turntables and moving displays
• STEM classes and robotics competition builds

What's in the Box

• 1 × GA12-N20 3 V micro metal gear motor

Tip: Do not power the motor straight from an Arduino or ESP32 pin; use a motor driver such as the DRV8833, TB6612FNG or L9110S. Swapping the two motor wires reverses the direction, and running it well above 3 V will shorten its life.
