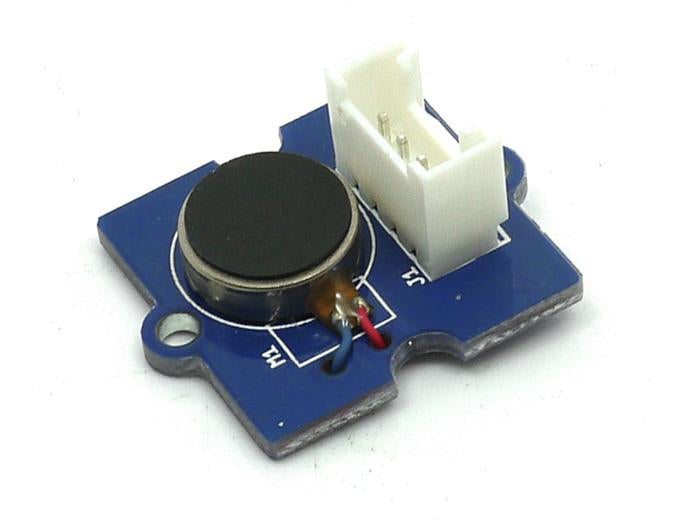

Grove Vibration Motor Module

The Grove Vibration Motor Module is a Seeed Grove module with a small coin-type vibration motor, the same kind used to make mobile phones buzz. Drive its signal pin HIGH and the motor vibrates; drive it LOW and it stops. It gives your project silent, tactile feedback and connects to an Arduino through a Grove Base Shield with a single cable, with no soldering needed.

Grove Vibration Motor Module Specifications

• Motor type: coin (flat) vibration motor
• Control: digital signal, HIGH = vibrate, LOW = off
• Operating voltage: 3.0–5.5 V, for 3.3 V and 5 V boards
• Connector: standard 4-pin Grove
• Compatibility: Arduino, Seeeduino and other Grove-ready boards

Grove Vibration Motor Module Applications

• Haptic feedback for buttons, menus and touch interfaces
• Silent alarms and timer alerts
• Wearable and assistive devices
• Notifications in IoT projects, such as a message or sensor alert
• Robotics projects and game controllers

What's in the Box

• 1 × Grove Vibration Motor Module

Tip: Use short pulses, for example 100–300 ms on and off, to create different vibration patterns for different alerts. Fix the module firmly to the case or strap so the vibration is felt clearly.
