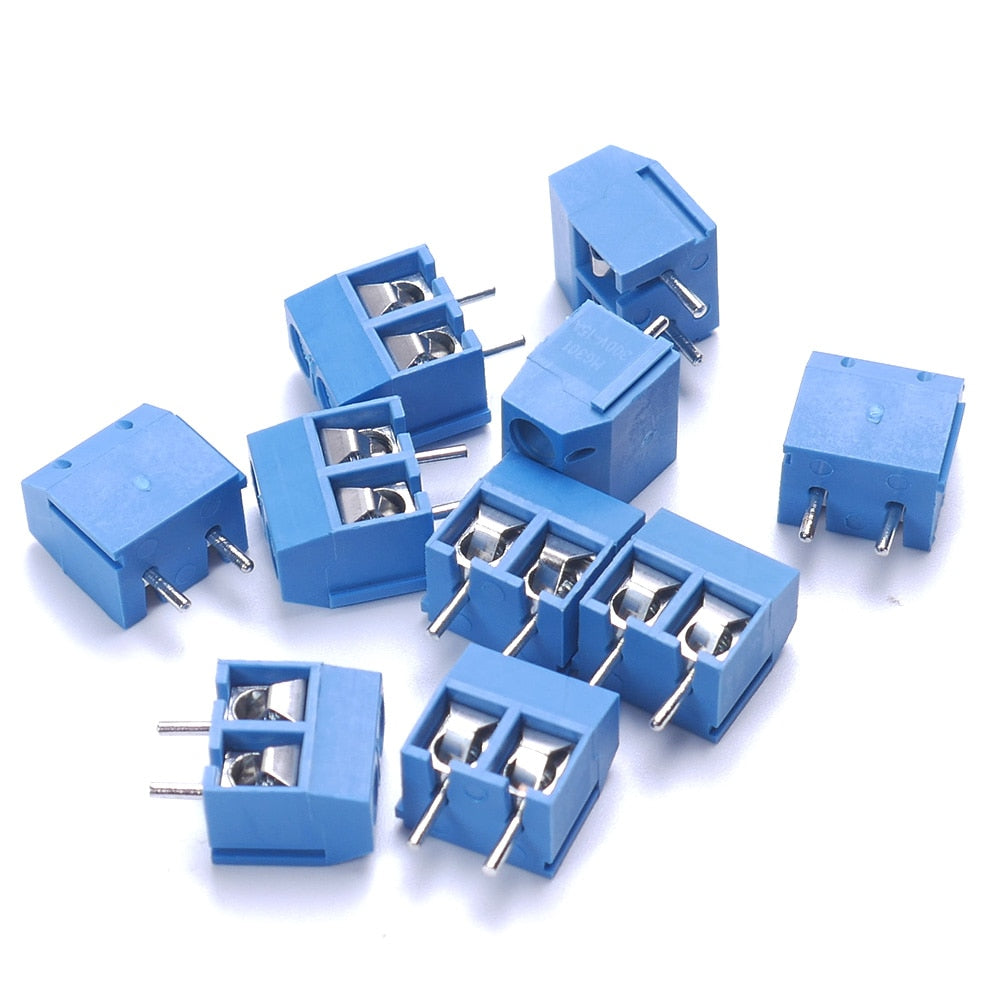

KF301-2P 5.08mm Blue Screw Terminal 2pins 5pcs

The KF301-2P 5.08mm Blue Screw Terminal is a 2-pin PCB terminal block that lets you connect wires to a circuit board with a screwdriver instead of soldering them, sold in a pack of 5. It is a standard part for power inputs, motor outputs, relay contacts and sensor wires on perfboards and custom PCBs.

KF301-2P 5.08mm Blue Screw Terminal Specifications

• Model: KF301-2P
• Positions: 2 pins
• Pin pitch: 5.08 mm (0.2 in)
• Mounting: through-hole, solders onto PCBs and perfboard
• Clamping: screw clamp, one screw per wire
• Colour: blue
• Pack size: 5 pieces

KF301-2P 5.08mm Blue Screw Terminal Applications

• Power input connectors on DIY boards and shields
• Motor, LED strip and relay output connections
• Removable wiring for sensors and control panels
• Student PCBs and prototype boards

What's in the Box

• 5 × KF301-2P 2-pin screw terminals, 5.08 mm, blue

Tip: The 5.08 mm pitch is exactly two holes on a 2.54 mm perfboard, so leave one empty hole between the pins. Strip just enough insulation so that no bare copper shows outside the clamp, insert the wire fully and tighten the screw firmly.
