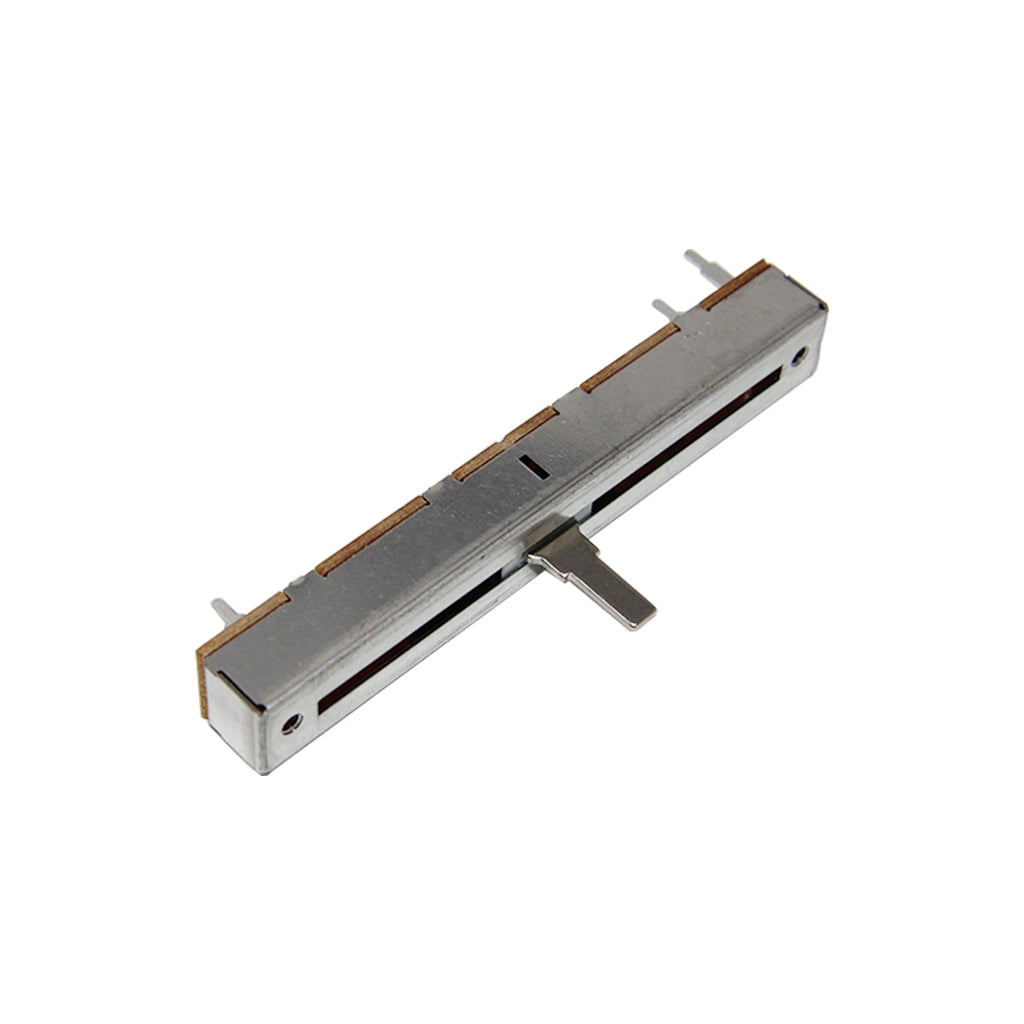

Large Slider Potentiometer 500K ohm

The Large Slider Potentiometer 500K ohm is a large-format slide potentiometer with a 500 kΩ resistive track. Moving the slider shifts the wiper along the track in a straight line, and the larger format makes it easy to set and read by hand. With 500 kΩ across the track it draws only about 10 µA at 5 V, which suits timer adjustment, gain setting and low-current control panels.

Large Slider Potentiometer 500K ohm Specifications

• Type: slide (linear-motion) potentiometer, large format
• Resistance: 500 kΩ (500,000 ohms) between the end terminals
• Adjustment: sliding lever moves the wiper along a straight track
• Current through the track at 5 V: about 10 µA
• Wiring: both ends and the wiper as a voltage divider, or the wiper and one end as a variable resistor

Large Slider Potentiometer 500K ohm Applications

• Frequency and duty-cycle adjustment in 555 timer circuits
• Gain and level setting in op-amp circuits
• Hand-operated controls on lab panels and test rigs
• Replacing a 500 kΩ slide control in existing equipment
• Electronics classes and prototyping

What's in the Box

• 1 × large slider potentiometer, 500 kΩ

Tip: Microcontroller ADCs prefer a low source impedance (about 10 kΩ or less on the Arduino Uno), so readings from a 500 kΩ pot can be noisy. Add a 100 nF capacitor from the wiper to GND, or use it in high-impedance op-amp and timer circuits.
