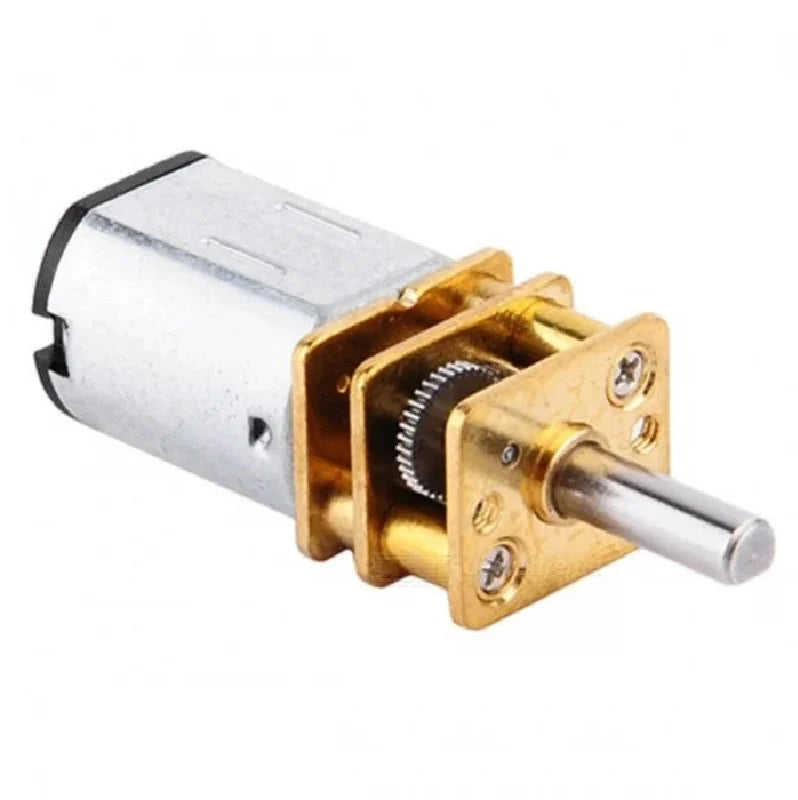

Micro DC A12-N20 3V 60RPM Metal Gear Reduction Motor

The Micro DC A12-N20 3V 60RPM metal gear reduction motor is a miniature N20 brushed DC motor with a metal gearbox that gives a slow output speed of 60 RPM at 3 V. Its tiny size and geared torque make it a favourite for small robots, mini cars, locks, valves and other compact mechanisms driven by an Arduino or ESP32 through a motor driver.

Micro DC A12-N20 3V 60RPM Specifications

• Motor type: N20 micro brushed DC gear motor
• Rated voltage: 3 V DC
• Output speed: 60 RPM at 3 V
• Gearbox: metal reduction gears
• Frame size: 12 × 10 mm gearbox (standard N20)
• Output shaft: 3 mm D-shaft
• Terminals: 2 solder tabs

Micro DC A12-N20 3V 60RPM Applications

• Small robots, line followers and mini RC vehicles
• Electronic locks, valves and latches
• Slow-turning displays, camera sliders and rotating models
• Robotics and STEM classroom projects

What's in the Box

• 1 × N20 3 V 60 RPM metal gear motor

Tip: Do not power the motor directly from a microcontroller pin; use a low-voltage driver such as the DRV8833, TB6612FNG or L9110S, which also lets you reverse the direction. Running the motor well above 3 V raises the speed but shortens its life.
