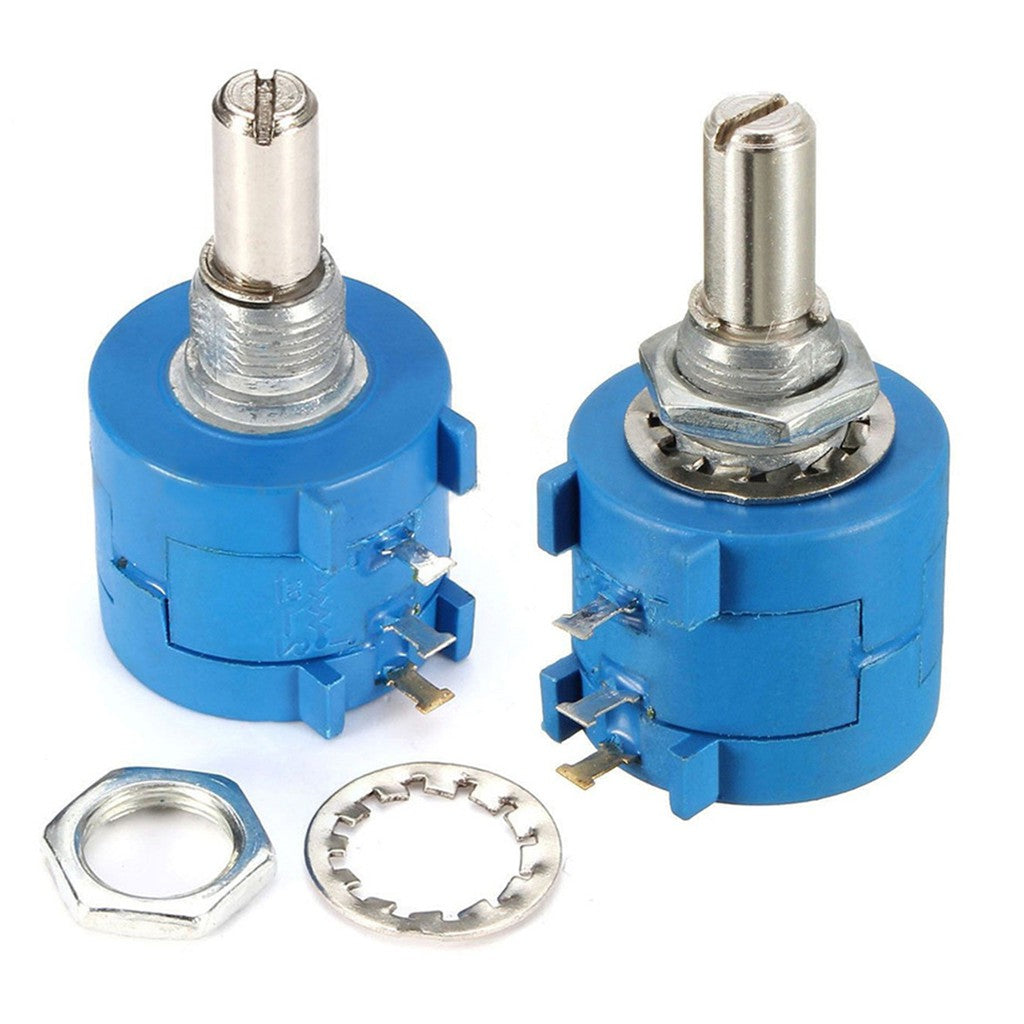

Multiturn Potentiometer 10M ohm

The Multiturn Potentiometer 10M ohm is a fine-adjustment variable resistor with a 10 MΩ track. Its adjuster must be turned several full revolutions to travel from one end of the track to the other, so each turn changes the resistance only a little and you can set and repeat a value much more finely than with a single-turn potentiometer. The very high 10 MΩ value suits high-impedance and very low-current circuits.

Multiturn Potentiometer 10M ohm Specifications

• Type: multiturn potentiometer
• Resistance: 10 MΩ (10,000,000 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 0.5 µA

Multiturn Potentiometer 10M ohm Applications

• Fine adjustment in high-impedance amplifier and sensor circuits
• Long RC time delays in timer circuits such as the NE555
• Very low-current voltage dividers in battery-powered devices
• Calibration of test and measurement circuits
• Electronics labs and experiments

What's in the Box

• 1 × multiturn potentiometer, 10 MΩ

Tip: Use all three pins as a voltage divider, or the wiper (usually the middle pin, check the markings) and one end as a variable resistor. A 10 MΩ track has a very high output impedance, so buffer the wiper with an op-amp before feeding an ADC such as an Arduino analog input.
