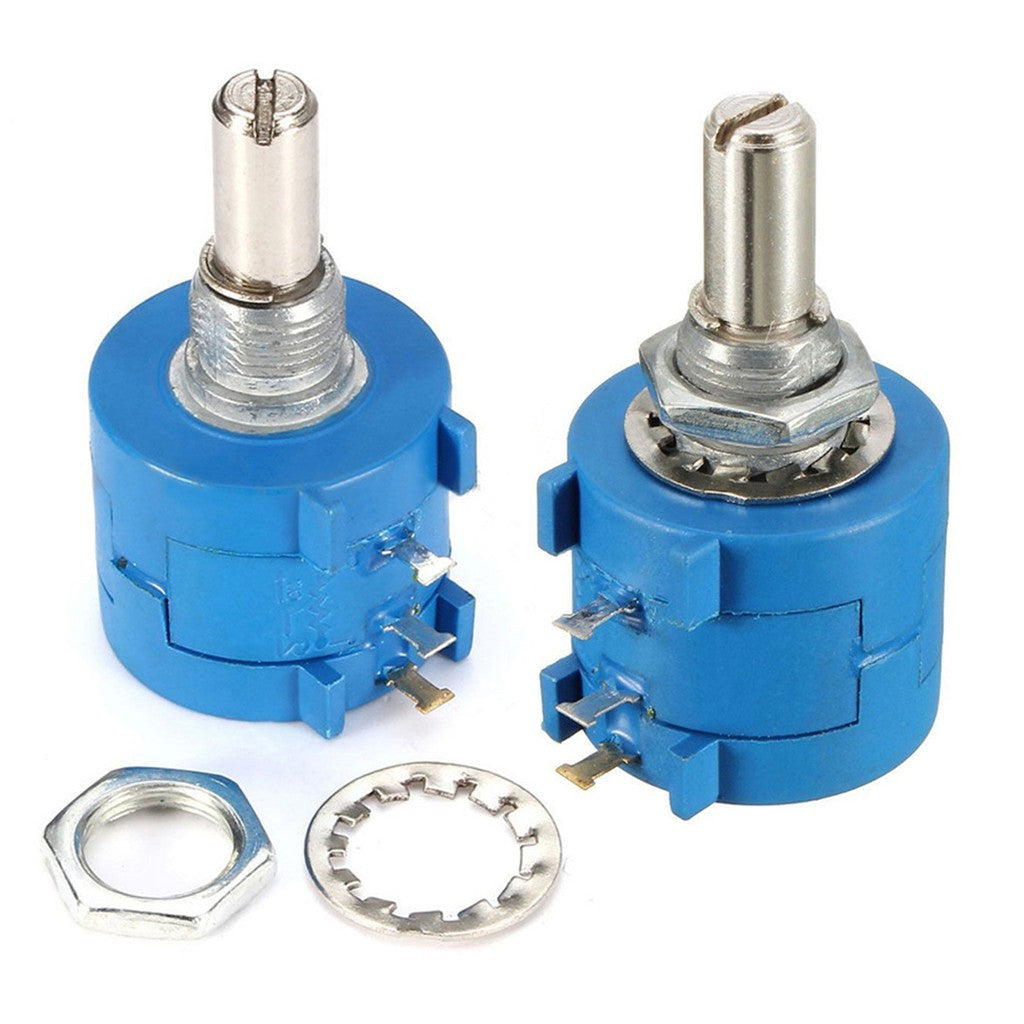

Multiturn Potentiometer 1M ohm

The Multiturn Potentiometer 1M ohm is a fine-adjustment variable resistor with a 1 MΩ track. The adjuster takes several full revolutions to cover the whole track, so small changes in resistance are easy to make and the setting can be repeated reliably. The 1 MΩ value is useful for high-impedance circuits, long timing delays and calibration points where the divider should draw very little current.

Multiturn Potentiometer 1M ohm Specifications

• Type: multiturn potentiometer
• Resistance: 1 MΩ (1,000,000 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 5 µA

Multiturn Potentiometer 1M ohm Applications

• Fine adjustment in high-impedance amplifier and sensor circuits
• Long RC time delays in timer circuits such as the NE555
• Low-current voltage dividers in battery-powered devices
• Op-amp gain setting and calibration of test circuits
• Electronics labs and experiments

What's in the Box

• 1 × multiturn potentiometer, 1 MΩ

Tip: Use all three pins as a voltage divider, or the wiper (usually the middle pin, check the markings) and one end as a variable resistor. A 1 MΩ track has a high output impedance, so buffer the wiper with an op-amp before feeding an ADC such as an Arduino analog input.
