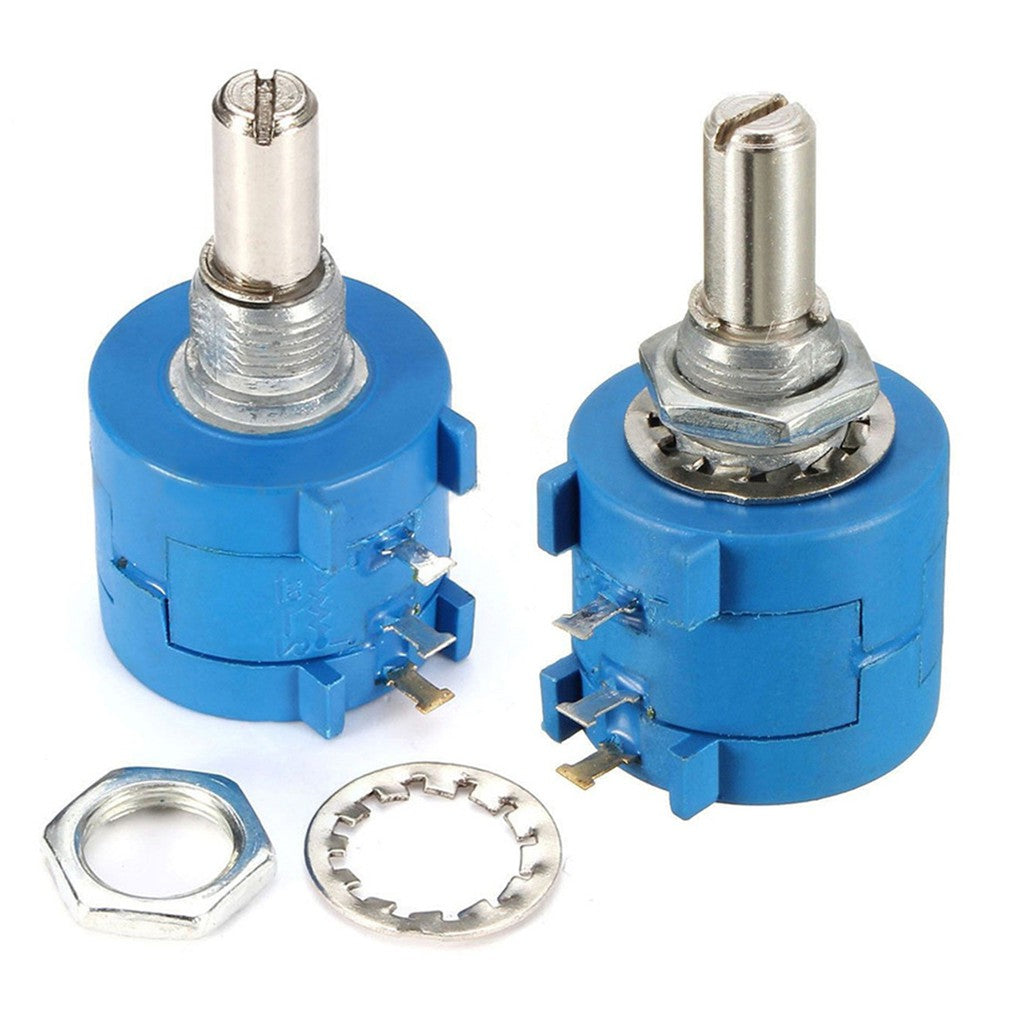

Multiturn Potentiometer 2.2K ohm

The Multiturn Potentiometer 2.2K ohm is a fine-adjustment variable resistor with a 2.2 kΩ track. Several full revolutions of the adjuster are needed to travel from one end of the track to the other, so you can make small, accurate changes and return to the same setting later. The 2.2 kΩ value suits voltage-regulator adjustment, calibration and low-impedance reference dividers.

Multiturn Potentiometer 2.2K ohm Specifications

• Type: multiturn potentiometer
• Resistance: 2.2 kΩ (2,200 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 2.3 mA

Multiturn Potentiometer 2.2K ohm Applications

• Setting the output voltage of LM317 and similar adjustable regulators
• Low-impedance reference voltage dividers
• Calibrating sensor and meter circuits
• Fine-tuning NE555 timer and oscillator frequencies
• Electronics labs and test rigs

What's in the Box

• 1 × multiturn potentiometer, 2.2 kΩ

Tip: For an LM317, the output is 1.25 V × (1 + R2 / R1). With R1 = 240 Ω and this 2.2 kΩ pot as R2 (wiper plus one end), you can adjust from 1.25 V up to about 12.7 V, as long as the input voltage is high enough.
