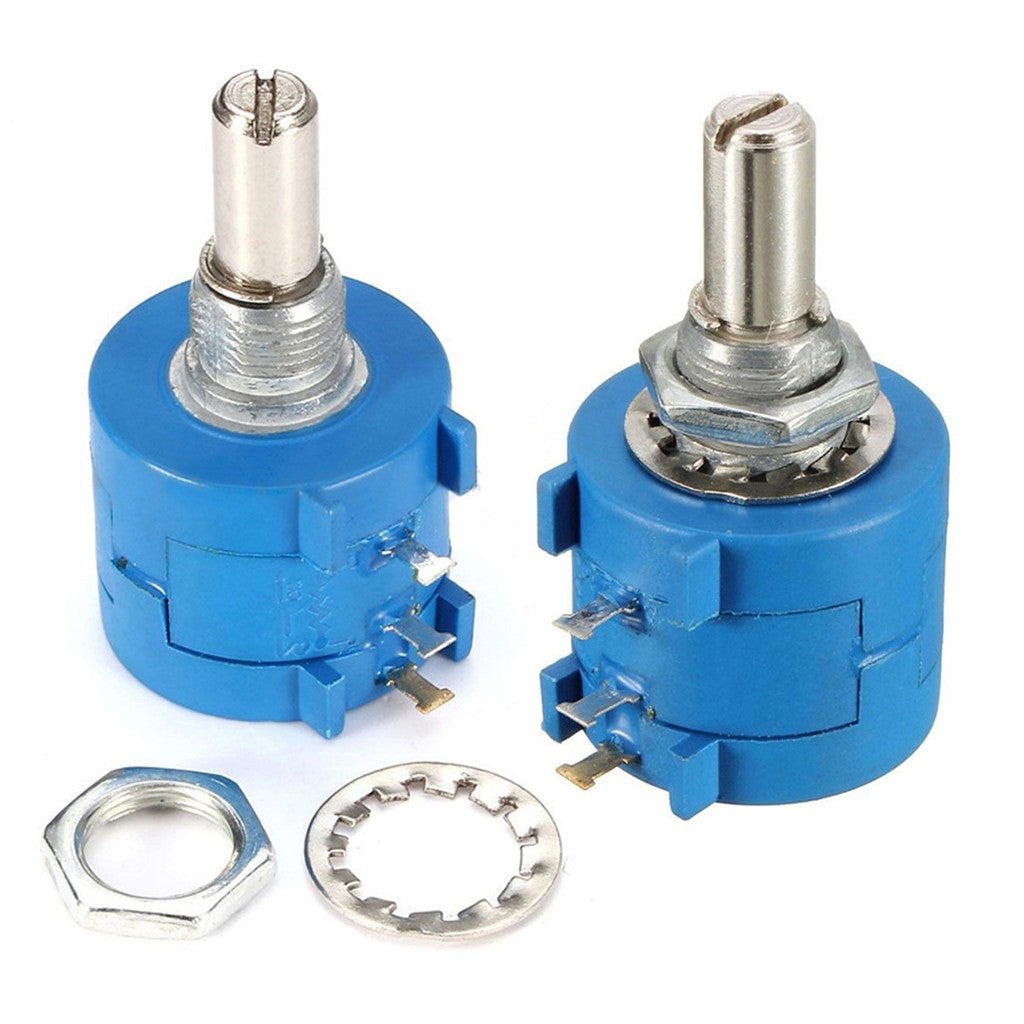

Multiturn Potentiometer 2.5M ohm

The Multiturn Potentiometer 2.5M ohm is a fine-adjustment variable resistor with a 2.5 MΩ track. Several full revolutions of the adjuster are needed to move from one end of the track to the other, so you can dial in a resistance very finely and come back to the same setting. The 2.5 MΩ value suits high-impedance circuits, long RC timing and dividers that need to draw only a few microamps.

Multiturn Potentiometer 2.5M ohm Specifications

• Type: multiturn potentiometer
• Resistance: 2.5 MΩ (2,500,000 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 2 µA

Multiturn Potentiometer 2.5M ohm Applications

• Fine adjustment in high-impedance amplifier and sensor circuits
• Long RC time delays in timer circuits such as the NE555
• Low-current voltage dividers in battery-powered devices
• Calibration of test and measurement circuits
• Electronics labs and experiments

What's in the Box

• 1 × multiturn potentiometer, 2.5 MΩ

Tip: Use all three pins as a voltage divider, or the wiper (usually the middle pin, check the markings) and one end as a variable resistor. A megaohm track has a high output impedance, so buffer the wiper with an op-amp before feeding an ADC such as an Arduino analog input.
