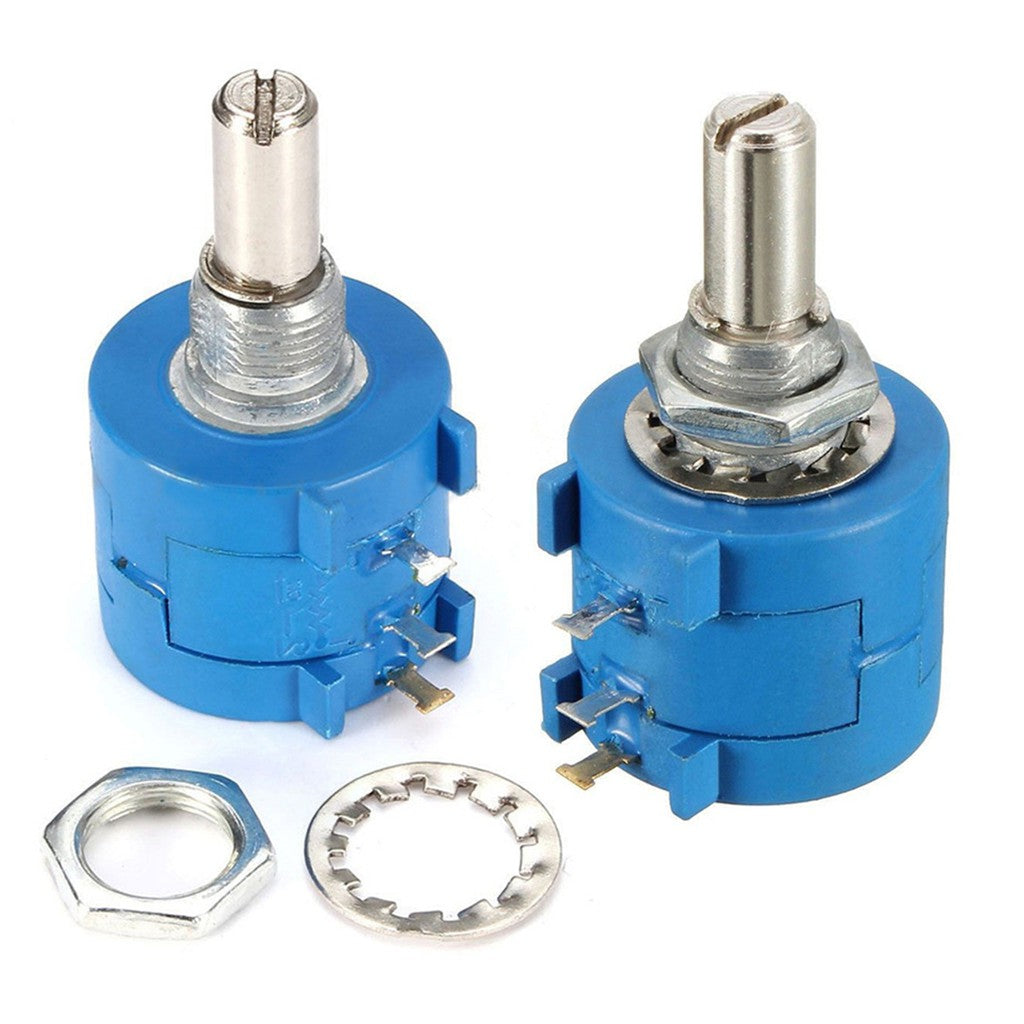

Multiturn Potentiometer 220K ohm

The Multiturn Potentiometer 220K ohm is a fine-adjustment variable resistor with a 220 kΩ track. Several full revolutions of the adjuster cover the whole track, so each turn changes the resistance only slightly and you can set a precise value and repeat it. The 220 kΩ value is a practical choice for gain, threshold and timing adjustment where the circuit should draw little current.

Multiturn Potentiometer 220K ohm Specifications

• Type: multiturn potentiometer
• Resistance: 220 kΩ (220,000 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 23 µA

Multiturn Potentiometer 220K ohm Applications

• Op-amp gain and offset adjustment
• Setting comparator thresholds, for example with the LM393
• Fine-tuning NE555 timer and oscillator periods
• Calibrating sensor and meter circuits
• Electronics labs and experiments

What's in the Box

• 1 × multiturn potentiometer, 220 kΩ

Tip: The wiper is usually the middle pin; check the markings. Potentiometers above about 40 kΩ can exceed the 10 kΩ source impedance recommended for the Arduino Uno ADC, so add an op-amp buffer, or a 100 nF capacitor from the wiper to GND, for steady readings.
