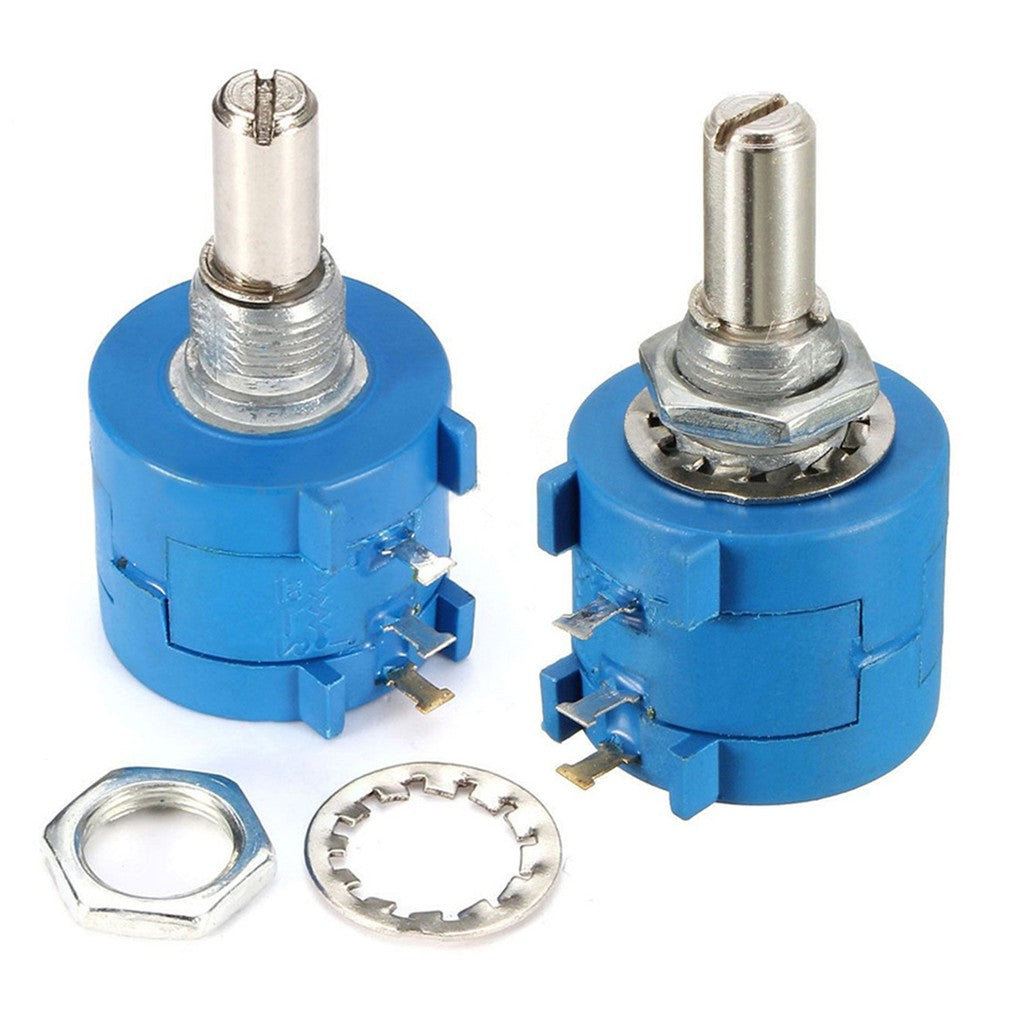

Multiturn Potentiometer 5M ohm

The Multiturn Potentiometer 5M ohm is a fine-adjustment variable resistor with a 5 MΩ track. The adjuster takes several full revolutions to travel the whole track, so each turn moves the resistance only slightly and a setting can be made precisely and repeated later. The high 5 MΩ value is intended for high-impedance circuits, long timing delays and voltage dividers that must draw almost no current.

Multiturn Potentiometer 5M ohm Specifications

• Type: multiturn potentiometer
• Resistance: 5 MΩ (5,000,000 ohms) end to end
• Adjustment: several full turns across the track for fine control
• Connections: two track ends and a wiper
• Track current at 5 V: about 1 µA

Multiturn Potentiometer 5M ohm Applications

• Fine adjustment in high-impedance amplifier and sensor circuits
• Long RC time delays in timer circuits such as the NE555
• Very low-current voltage dividers in battery-powered devices
• Calibration of test and measurement circuits
• Electronics labs and experiments

What's in the Box

• 1 × multiturn potentiometer, 5 MΩ

Tip: Use all three pins as a voltage divider, or the wiper (usually the middle pin, check the markings) and one end as a variable resistor. A 5 MΩ track has a very high output impedance, so buffer the wiper with an op-amp before connecting it to an ADC such as an Arduino analog input.
