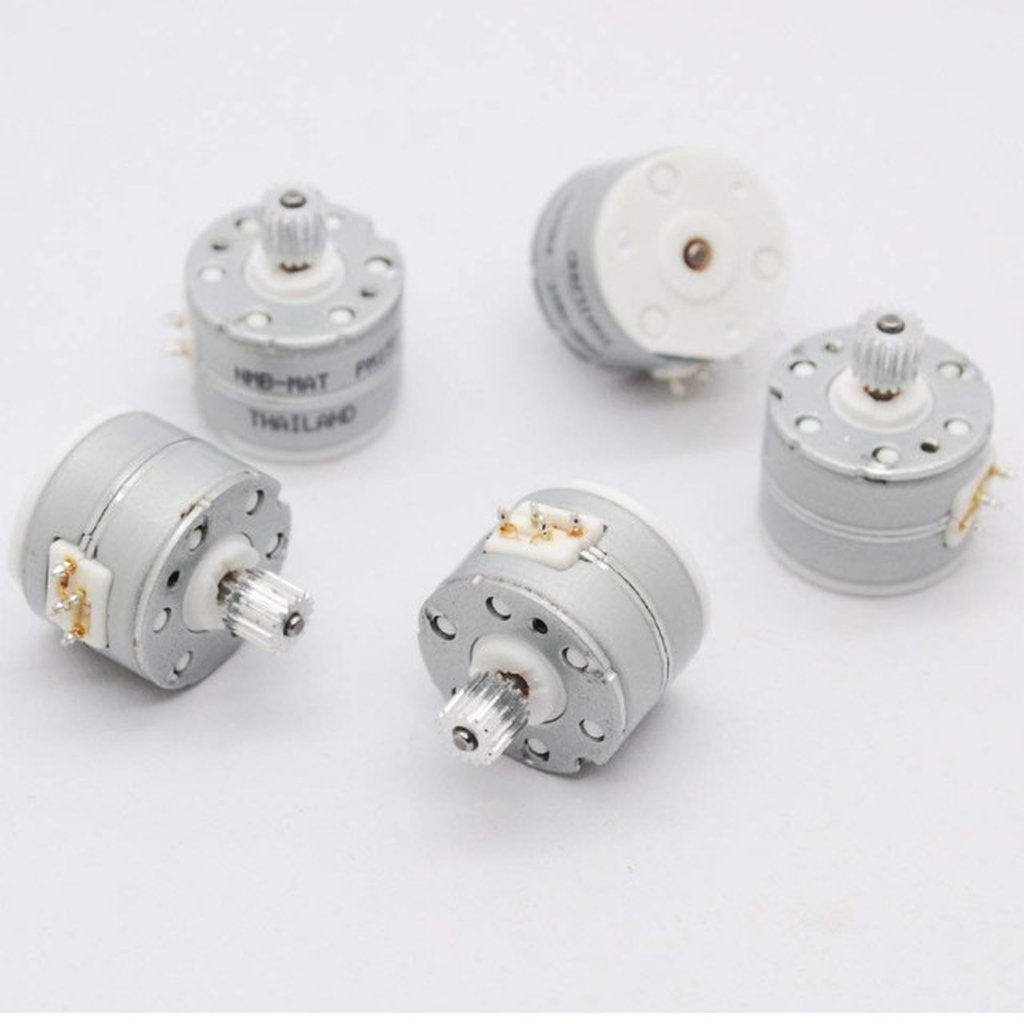

PM15S-020-CTA6

The PM15S-020-CTA6 is a miniature PM (permanent-magnet, can-stack) stepper motor. In the PM part-number scheme, the 15 gives the body diameter of about 15 mm and the 020 gives 20 full steps per revolution, which is an 18° step angle. Small PM steppers like this are used in printers, valves and other compact mechanisms, and they suit makers who need repeatable movement in a tight space.

PM15S-020-CTA6 Specifications

• Motor type: 2-phase permanent-magnet (PM) stepper motor
• Body diameter: about 15 mm (from the PM15 code)
• Full steps per revolution: 20
• Step angle: 18° full step, 9° in half-step mode
• Variant code: CTA6

PM15S-020-CTA6 Applications

• Small pointers, dials and positioning mechanisms
• Mini linear actuators, valves and dosing mechanisms
• Arduino and ESP32 stepper motor projects
• Replacing the same part in an existing device

What's in the Box

• 1 × PM15S-020-CTA6 stepper motor

Tip: Count the wires before choosing a driver: a 4-wire motor is bipolar and needs an H-bridge driver such as the DRV8833 or L293D, while a 5- or 6-wire motor can run unipolar from a ULN2003. Find the coil pairs with a multimeter and check the rated voltage before powering it.
