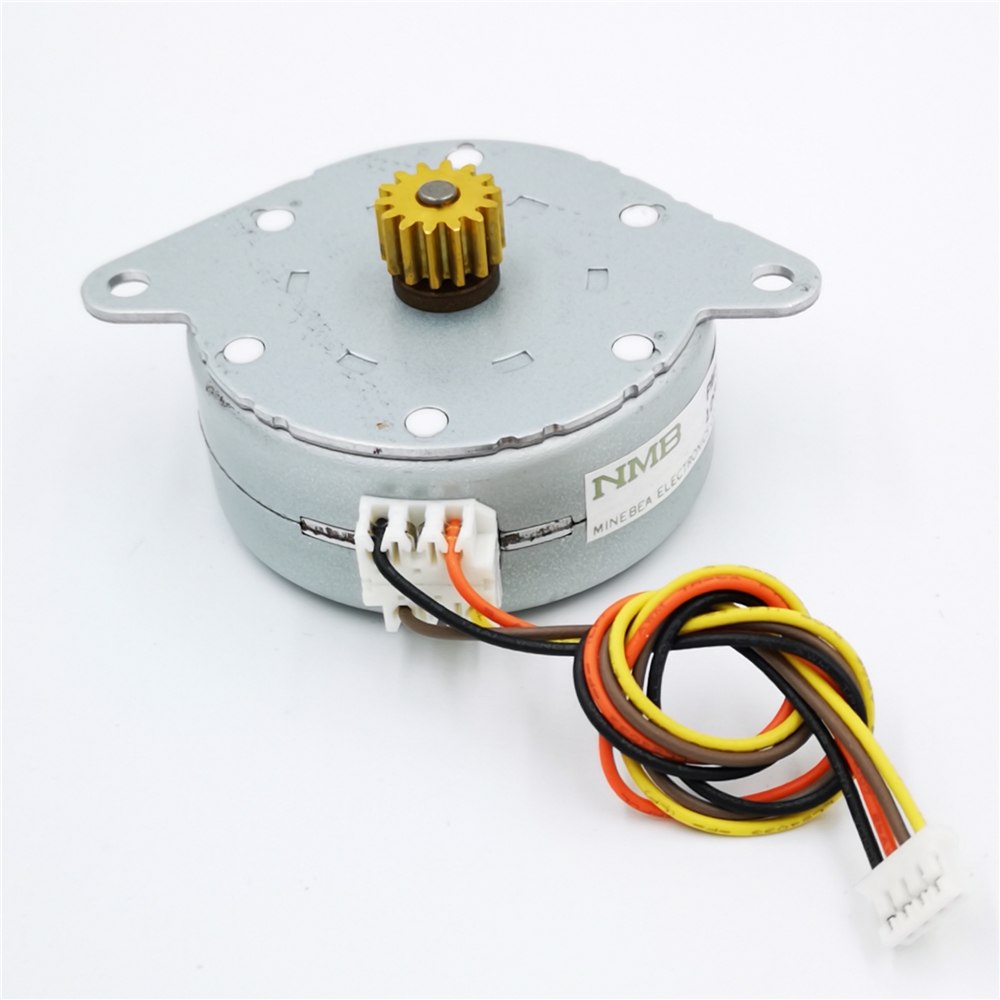

PM25S-024-CDN0

The PM25S-024-CDN0 is a PM (permanent-magnet, can-stack) stepper motor about 25 mm in diameter. The 024 code means 24 full steps per revolution, so each step is 15°. With fewer, larger steps than 7.5° motors, it suits mechanisms that need quick moves between a small number of fixed positions, such as indexing wheels, selectors and simple dispensers.

PM25S-024-CDN0 Specifications

• Motor type: 2-phase permanent-magnet (PM) stepper motor
• Body diameter: about 25 mm (from the PM25 code)
• Full steps per revolution: 24
• Step angle: 15° full step, 7.5° in half-step mode
• Variant code: CDN0

PM25S-024-CDN0 Applications

• Indexing wheels and rotary selectors
• Coin, pill and card dispensers
• Valve and flap actuators
• Arduino and robotics learning projects

What's in the Box

• 1 × PM25S-024-CDN0 stepper motor

Tip: For smoother motion and finer positioning, run the motor in half-step mode, which doubles the resolution to 48 positions per turn. Use a driver such as the DRV8833 for a 4-wire motor or a ULN2003 for a 5- or 6-wire motor.
