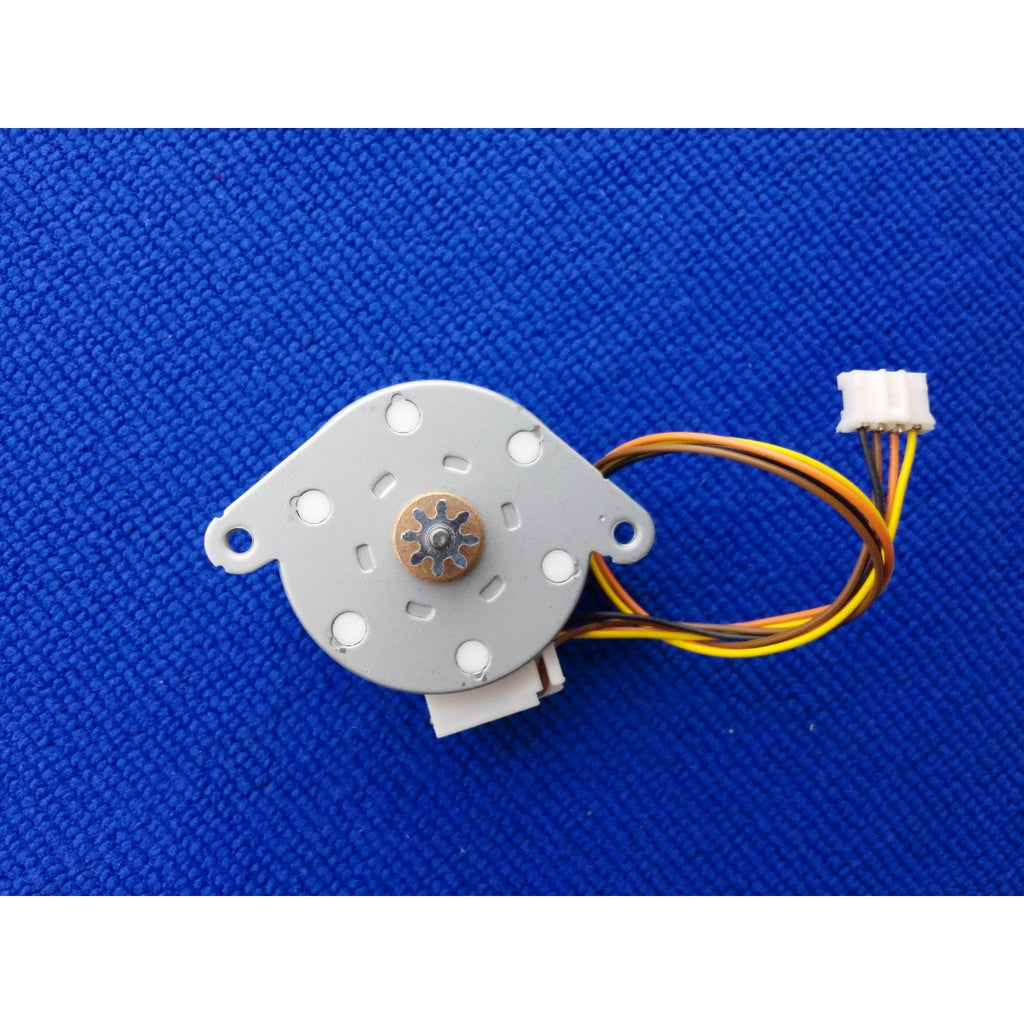

PM35L-048-HPH7

The PM35L-048-HPH7 is a PM (permanent-magnet, can-stack) stepper motor with a body diameter of about 35 mm. The 048 in the part number means 48 full steps per revolution, giving a 7.5° step angle. It is larger than the miniature PM15 and PM25 types, which makes it a practical choice for printers, scanners, rotating displays and robotics projects that need more holding power with simple open-loop control.

PM35L-048-HPH7 Specifications

• Motor type: 2-phase permanent-magnet (PM) stepper motor
• Body diameter: about 35 mm (from the PM35 code)
• Full steps per revolution: 48
• Step angle: 7.5° full step, 3.75° in half-step mode
• Variant code: HPH7

PM35L-048-HPH7 Applications

• Paper and film feed mechanisms
• Rotating platforms, displays and camera turntables
• Valve control and small dosing pumps
• Robotics and Arduino motion projects

What's in the Box

• 1 × PM35L-048-HPH7 stepper motor

Tip: Check the wire count first: 4 wires means a bipolar motor for an H-bridge driver such as the L298N or DRV8833, and 5 or 6 wires means it can also run unipolar from a ULN2003 board. Measure the coil resistance to find each coil pair and match the supply to the motor's rated voltage.
