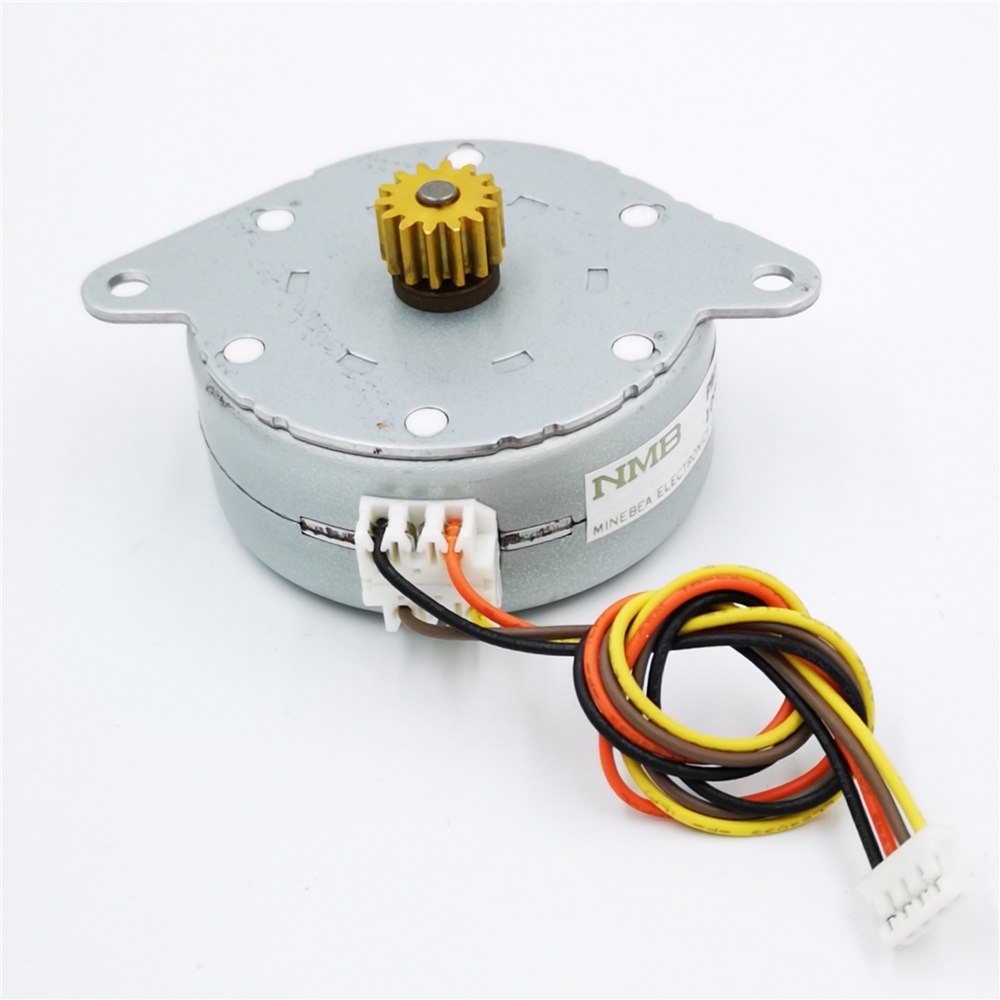

PM35S-048-BKB2

The PM35S-048-BKB2 is a permanent magnet (PM) stepper motor of the 35 mm can-stack type. In this part-number format, 048 means 48 steps per revolution, which is a 7.5° step angle. Each electrical pulse moves the shaft by one step, so position and speed can be controlled without a feedback sensor, which suits printers, scanners, valves, small positioning mechanisms and robotics projects.

PM35S-048-BKB2 Specifications

• Type: permanent magnet (PM) can-stack stepper motor
• Frame: 35 mm class (PM35 series)
• Step angle: 7.5°
• Steps per revolution: 48
• Control: step pulses from a stepper motor driver

PM35S-048-BKB2 Applications

• Paper feed and carriage drives in printers and scanners
• Valve, damper and flap actuators
• Pointer, gauge and camera positioning
• Small robotics and Arduino motion projects
• Spare part for office equipment repairs

What's in the Box

• 1 × PM35S-048-BKB2 stepper motor

Tip: The coil voltage and wiring are not given in the name, so identify the coils with a multimeter first: 4 wires means a bipolar motor (use a driver such as the L293D, DRV8833 or A4988), while 5 or 6 wires usually means unipolar (a ULN2003 driver works). Start with a low supply voltage or current limit and raise it only if the motor misses steps.
