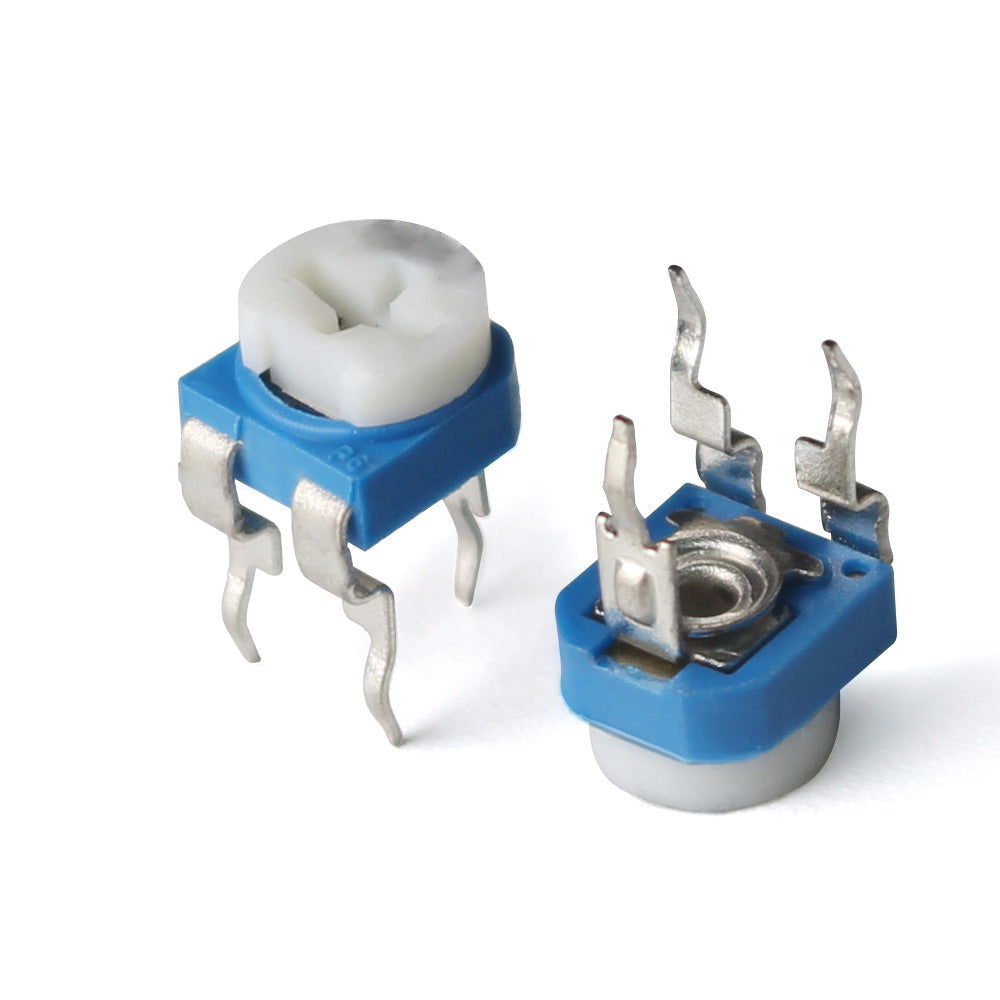

Potentiometer 100k Ohm 5pcs

The Potentiometer 100k Ohm pack contains 5 variable resistors, each with a 100 kΩ resistive track and three terminals. Turning the wiper changes the resistance between the middle pin and each outer pin, so each one works as an adjustable voltage divider or variable resistor for settings, controls and analog inputs. The high 100 kΩ value draws very little current, which suits battery-powered circuits, op-amp stages and timer circuits.

Potentiometer 100k Ohm Specifications

• Resistance: 100 kΩ between the two outer pins
• Terminals: 3 (two track ends and the wiper)
• Use: adjustable voltage divider or variable resistor
• Current through the track: 50 µA at 5 V
• Pack size: 5 pieces

Potentiometer 100k Ohm Applications

• Adjusting op-amp gain and comparator thresholds
• Setting frequency or delay in 555 timer circuits
• Volume and level controls in simple audio circuits
• Calibrating sensor and reference voltages
• Electronics classes and prototyping

What's in the Box

• 5 × 100 kΩ potentiometers

Tip: Connect the two outer pins to the supply and GND and take the adjustable voltage from the middle pin. For Arduino analog readings a 10 kΩ potentiometer gives the steadiest values; if readings from this 100 kΩ part jump, add a 100 nF capacitor between the wiper and GND.
