Potentiometer 2W 1M ohm

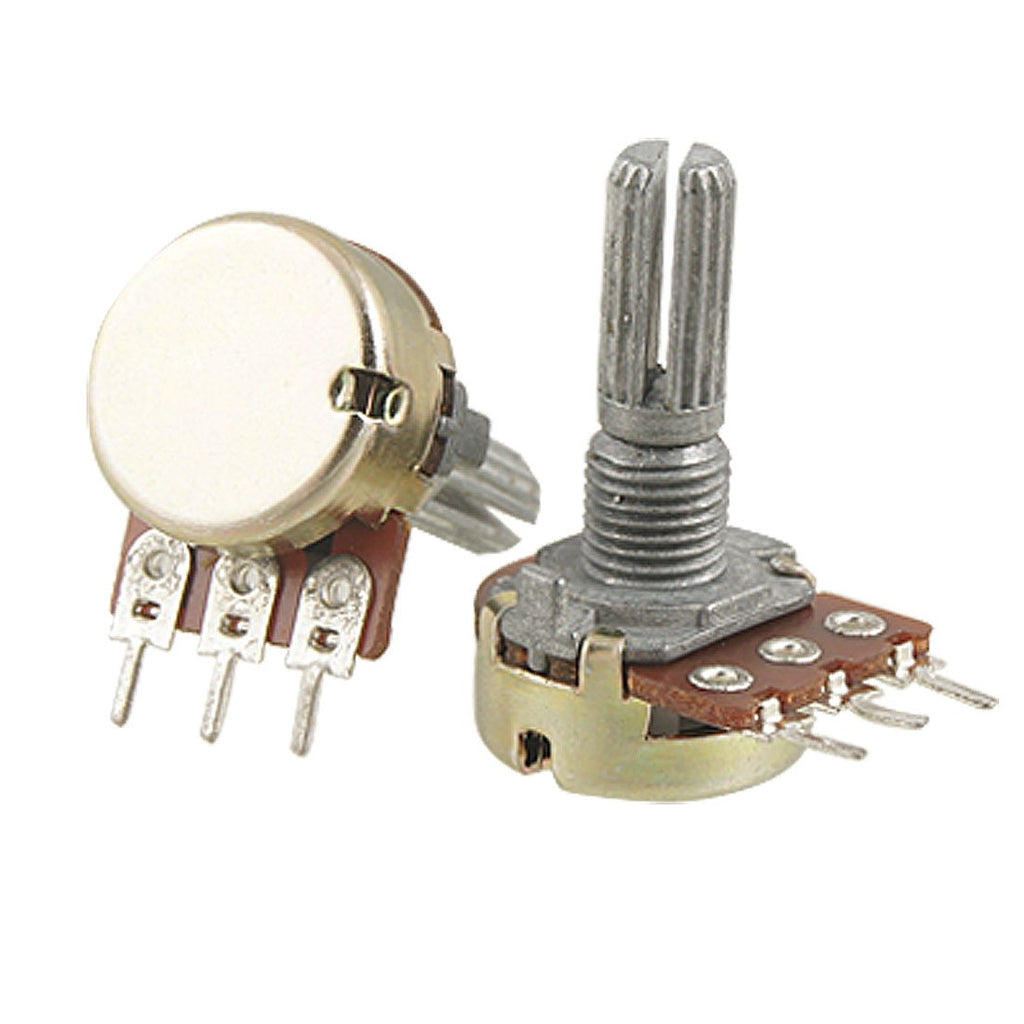

The Potentiometer 2W 1M ohm is a rotary variable resistor with a total resistance of 1 MΩ (1,000,000 ohms) and a power rating of 2 W. Turning the shaft moves the wiper along the track, so you can set any resistance from almost zero up to 1 MΩ between the wiper and one end. Its very high value lets only microamps flow, which suits high-impedance audio stages, long RC time delays and sensitivity adjustments.

Potentiometer 2W 1M ohm Specifications

• Resistance: 1 MΩ across the full track
• Power rating: 2 W
• Type: rotary potentiometer, 3 terminals
• Wiring: two track ends plus the centre wiper
• Current through the full track: 5 µA at 5 V, 12 µA at 12 V
• Pack size: 1 piece

Potentiometer 2W 1M ohm Applications

• Volume and tone controls in high-impedance audio circuits
• Setting long delays in 555 timer and RC timing circuits
• Sensitivity adjustment in sensor, alarm and comparator circuits
• Op-amp gain and bias adjustment
• Repairs of amplifiers and other electronic equipment

What's in the Box

• 1 × 1 MΩ 2 W potentiometer

Tip: For a voltage divider, connect the two outer pins to the supply and GND and take the output from the centre pin. A 1 MΩ value is too high for steady Arduino analog readings, so for microcontroller controls choose about 10 kΩ, or add a 100 nF capacitor from the wiper to GND.
