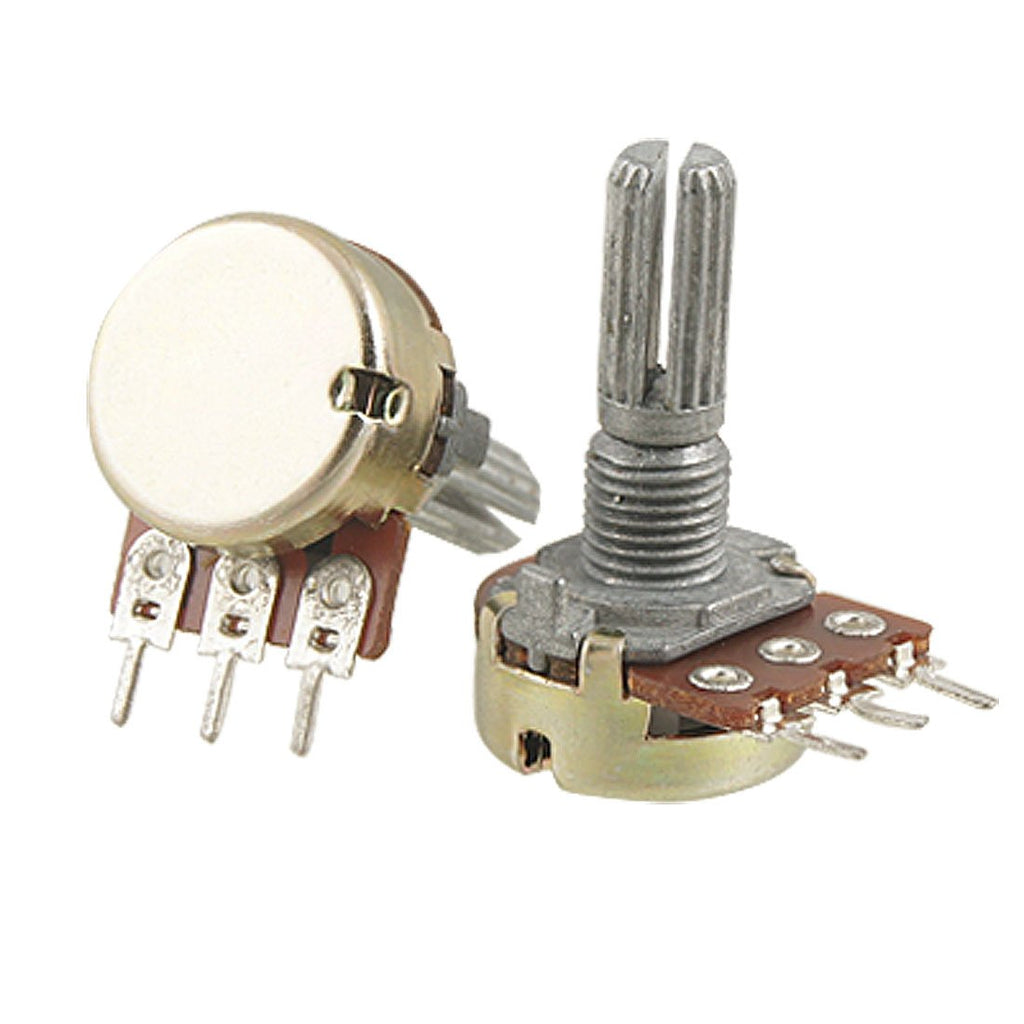

Potentiometer 2W 500K ohm

The Potentiometer 2W 500K ohm is a rotary variable resistor with a total resistance of 500 kΩ and a power rating of 2 W. Its very high resistance means only a tiny current flows through the track, so it suits high-impedance circuits such as audio and amplifier controls, long timing adjustments and op-amp gain settings.

Potentiometer 2W 500K ohm Specifications

• Resistance: 500 kΩ across the full track
• Power rating: 2 W
• Type: rotary potentiometer, 3 terminals
• Wiring: two track ends plus the centre wiper
• Current through the full track: 10 µA at 5 V, about 24 µA at 12 V
• Pack size: 1 piece

Potentiometer 2W 500K ohm Applications

• Volume and tone controls in high-impedance audio circuits
• Adjusting long delays in 555 timer and RC timing circuits
• Op-amp gain and comparator threshold adjustment
• Variable bias networks
• Repairs of amplifiers and other electronic equipment

What's in the Box

• 1 × 500 kΩ 2 W potentiometer

Tip: With 500 kΩ the power rating is almost never the limit. Microcontroller analog inputs prefer much lower values, around 10 kΩ, so for Arduino controls choose a smaller potentiometer, or add a 100 nF capacitor between the wiper and GND to steady the readings.
