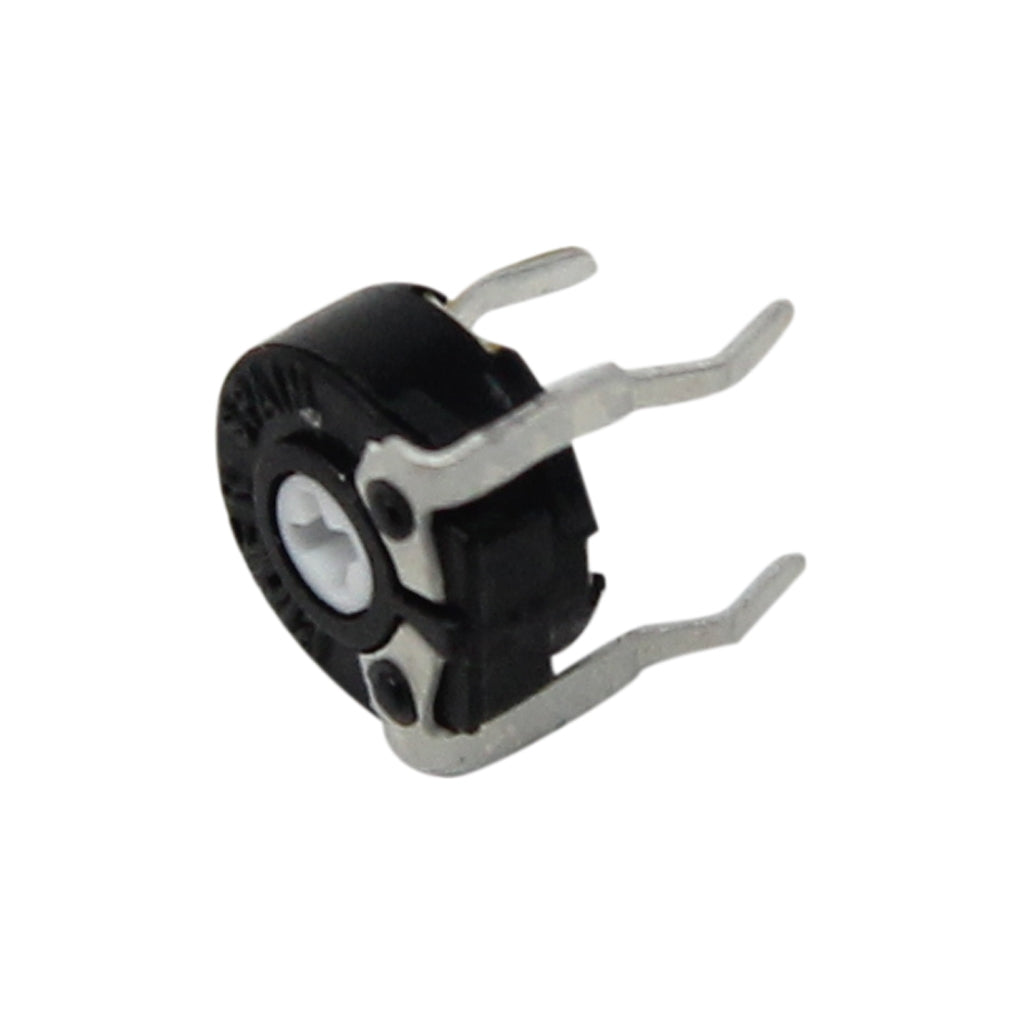

Potentiometer Carbon 220k

The Potentiometer Carbon 220k is a carbon-track potentiometer with a total resistance of 220 kΩ. Turning the adjuster moves a wiper along the track, so the resistance between the wiper and each end changes smoothly from almost zero up to 220 kΩ. High values like this suit audio, op-amp and timing circuits where very little current should flow through the control.

Potentiometer Carbon 220k Specifications

• Resistance: 220 kΩ (220,000 ohms) end to end
• Element: carbon track
• Terminals: 3, two track ends and the wiper
• Function: variable resistor or adjustable voltage divider
• Current through the track: about 23 µA at 5 V

Potentiometer Carbon 220k Applications

• Gain and volume controls in op-amp and audio circuits
• Adjustable timing with the NE555 and RC oscillators
• Sensitivity adjustment in sensor and alarm circuits
• Setting high-value bias and reference levels
• Electronics labs and repairs

What's in the Box

• 1 × 220 kΩ carbon potentiometer

Tip: Connect the two outer pins across the voltage and take the adjustable voltage from the wiper, usually the middle pin. For Arduino analog inputs a 10 kΩ potentiometer gives steadier readings; if you use this 220 kΩ part and the readings jump, add a 100 nF capacitor from the wiper to GND.
