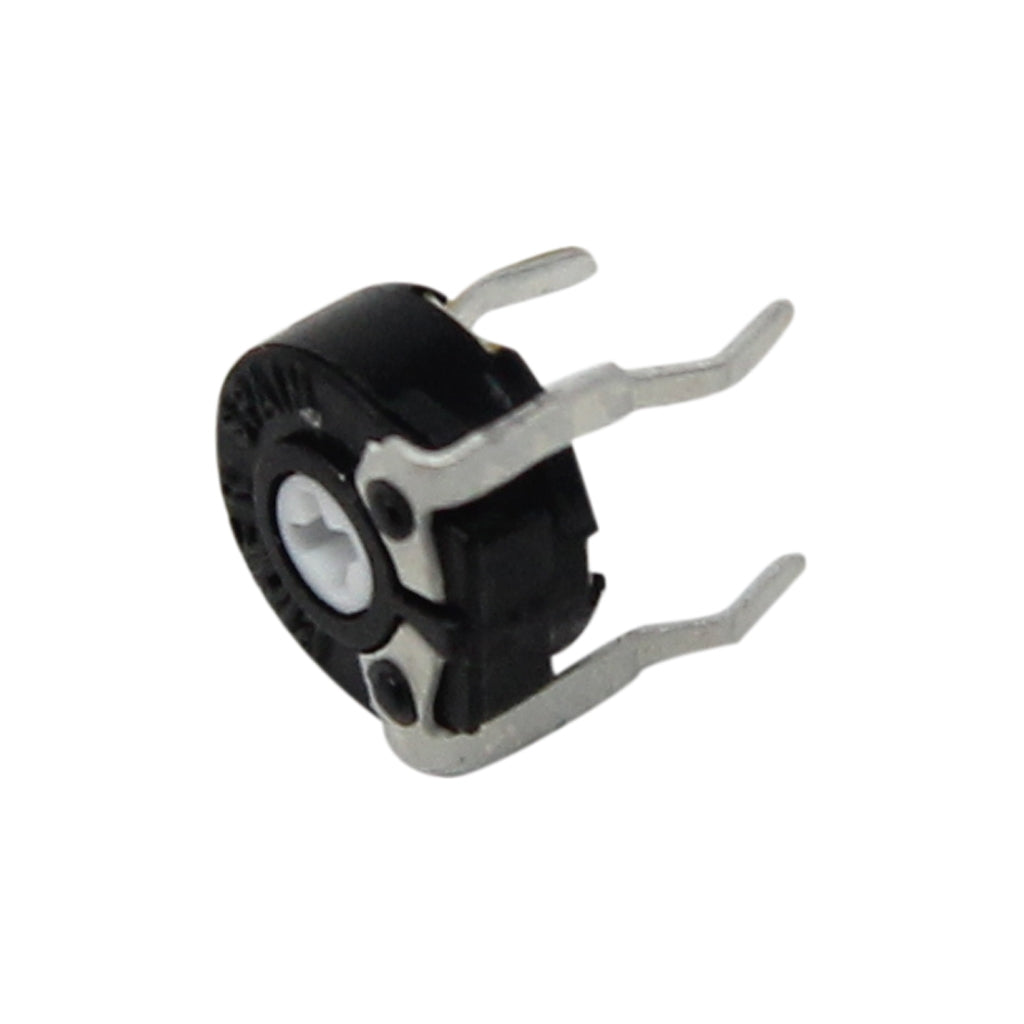

Potentiometer Carbon 5M ohm

The Potentiometer Carbon 5M ohm is a carbon-track potentiometer with a resistance of 5 MΩ. Adjusting the control moves a wiper along the carbon track, letting you vary the resistance or set any voltage between the two ends of the track. It is an economical choice for high-impedance circuits, long RC timing and dividers that should draw only about a microamp.

Potentiometer Carbon 5M ohm Specifications

• Type: carbon-track potentiometer (variable resistor)
• Resistance: 5 MΩ (5,000,000 ohms) end to end
• Connections: two track ends and a wiper
• Use: voltage divider or variable resistor (rheostat)
• Track current at 5 V: about 1 µA

Potentiometer Carbon 5M ohm Applications

• Adjustment in high-impedance amplifier and sensor circuits
• Long RC time delays in timer circuits such as the NE555
• Very low-current voltage dividers in battery-powered devices
• Replacing a worn potentiometer of the same value in repairs
• Electronics labs and experiments

What's in the Box

• 1 × carbon potentiometer, 5 MΩ

Tip: Use all three pins as a voltage divider, or the wiper (usually the middle pin) and one end as a variable resistor. A 5 MΩ track has a very high output impedance, so buffer the wiper with an op-amp before connecting it to an ADC such as an Arduino analog input.
