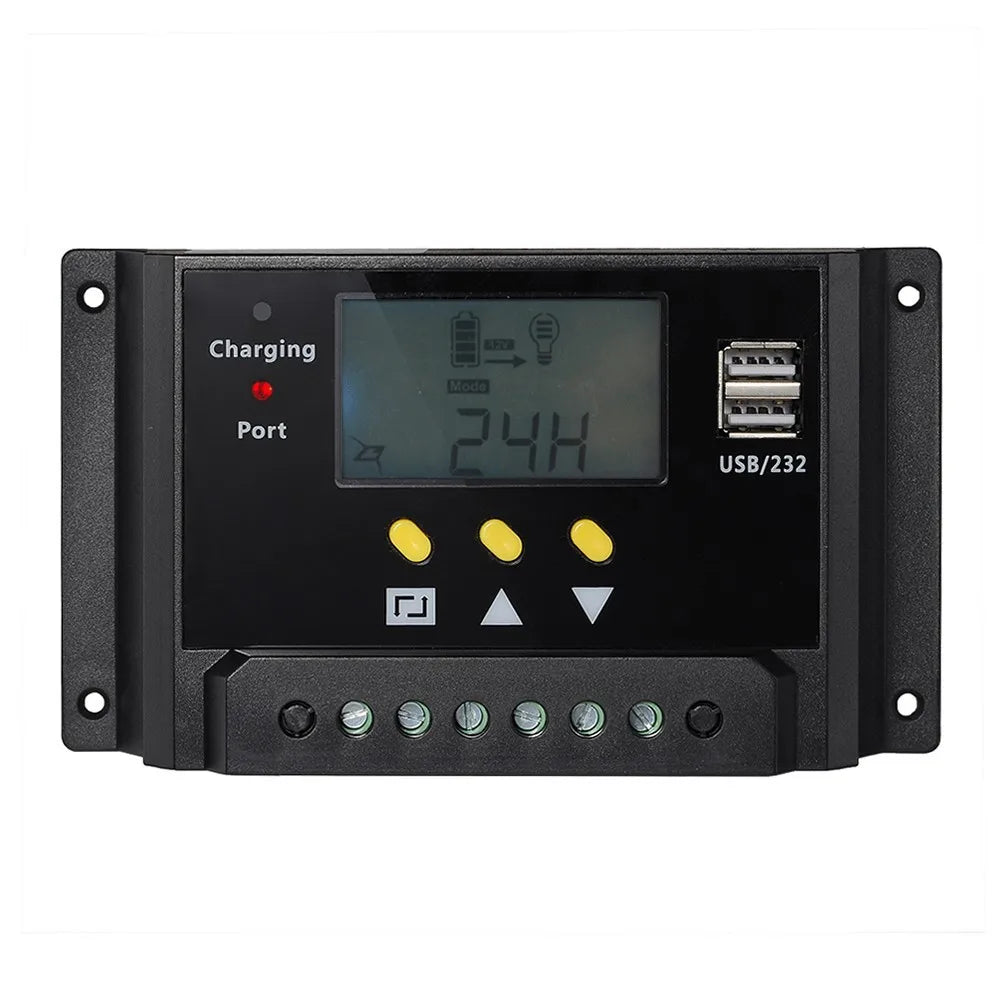

PWM 10A 12/24V Solar Charge Lamp Controller, Dual USB, LCD Display

The PWM 10A 12/24V Solar Charge lamp controller manages the flow of energy between a solar panel, a battery and a DC load such as a lamp. It charges 12 V or 24 V battery systems at up to 10 A using PWM (pulse width modulation), shows the system status on an LCD display and has two USB ports for charging phones and small devices directly from the battery.

PWM 10A 12/24V Solar Charge Controller Specifications

• Charging method: PWM (pulse width modulation)
• Rated current: 10 A
• System voltage: 12 V or 24 V
• Display: LCD for battery and system status
• USB outputs: 2 × USB, 5 V
• Connections: solar panel input, battery, and DC load (lamp) output

PWM 10A 12/24V Solar Charge Controller Applications

• Small off-grid solar systems for homes, shops and rooftops
• Solar street, garden and security lamp systems
• Charging phones and USB devices from a solar battery
• Backup lighting during power cuts, camping and cabins
• Learning about solar energy in schools

What's in the Box

• 1 × PWM 10A 12/24V solar charge controller

Tip: Connect the battery first, then the solar panel, then the load, and disconnect in the reverse order; this is the safe sequence for most PWM controllers. Keep both the panel current and the load current below 10 A.
