Screw Terminal Male + Female Green, 3 Pin

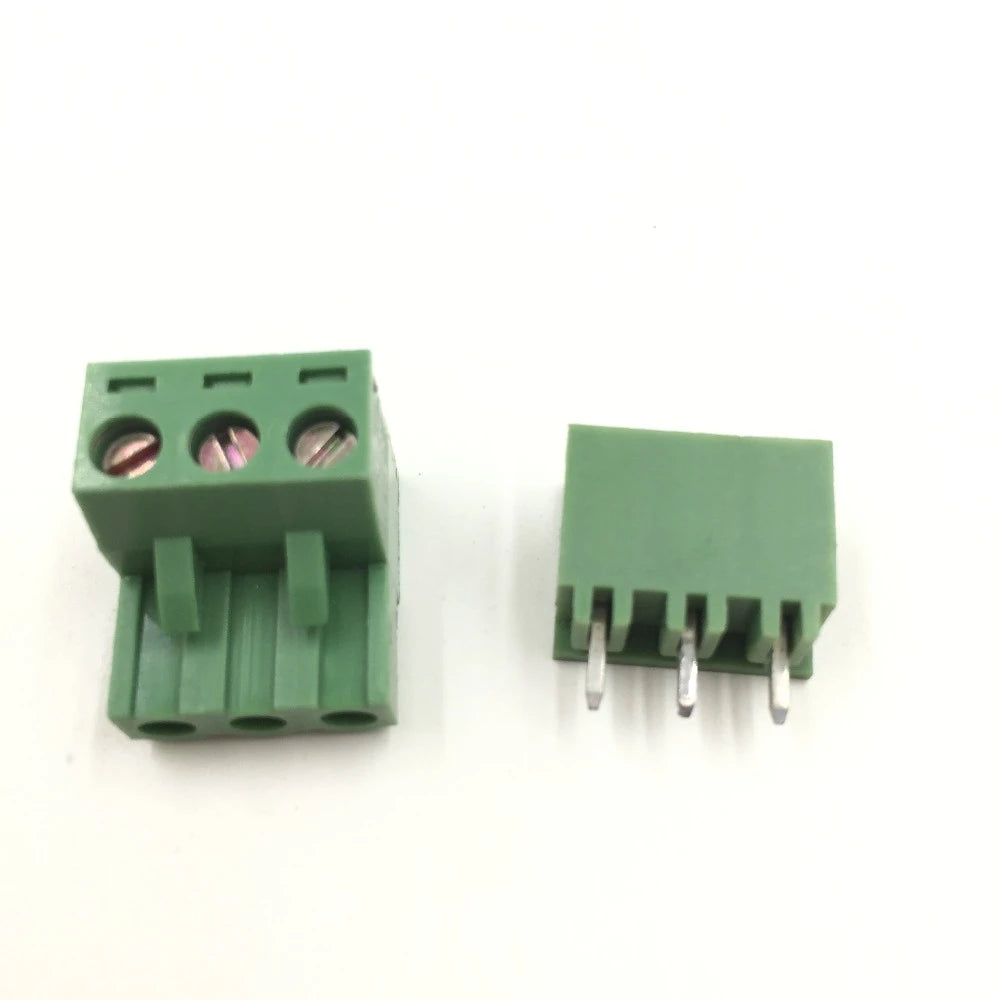

The Screw Terminal Male + Female set is a green 3-pin pluggable terminal block made of two parts: a male pin header that is soldered to the PCB and a female plug with screw clamps that holds the wires. Once the wires are screwed into the plug, you can pull it off the board and plug it back in, so a board can be removed or replaced without unscrewing every wire.

Screw Terminal Male + Female Specifications

• Pins: 3
• Parts: 1 male PCB header and 1 female screw plug
• Pitch: 5.08 mm
• Wire connection: screw clamp in the female plug
• Mounting: through-hole header soldered to the PCB
• Colour: green

Screw Terminal Male + Female Applications

• Power and signal inputs on custom PCBs and controller boards
• Connecting sensors, motors and relays in Arduino and ESP32 projects
• Control panels and automation boxes where boards need to be swapped
• Repairing or replacing pluggable terminals on equipment

What's in the Box

• 1 × 3-pin male header and 1 × 3-pin female screw plug, green

Tip: Strip just enough insulation for the bare wire to sit fully under the clamp, then tighten the screw firmly; a ferrule on stranded wire gives the most secure grip. Check that the pitch matches your PCB footprint before soldering the header.
