Spindle motor 400W ER11 12-48V Air cooled spindle + CNC Spindle Holder 52mm

The Spindle motor 400W ER11 12-48V is an air-cooled DC spindle for small CNC routers and engraving machines, supplied together with a 52 mm CNC spindle holder. It has an ER11 collet chuck for router bits and engraving cutters and runs from a 12–48 V DC supply, which makes it a popular choice for desktop CNC builds and upgrades that need more power than a small hobby motor.

Spindle motor 400W ER11 12-48V Specifications

• Power: 400 W
• Supply voltage: 12–48 V DC
• Cooling: air-cooled
• Tool holder: ER11 collet chuck (ER11 collets hold shanks up to 7 mm)
• Body diameter: 52 mm, to fit the included holder
• Mount: 52 mm CNC spindle holder included

Spindle motor 400W ER11 12-48V Applications

• Desktop CNC routers and engraving machines
• Milling and engraving wood, plastics, acrylic and PCB boards
• Light aluminium engraving with suitable bits and slow feeds
• DIY CNC builds and machine upgrades

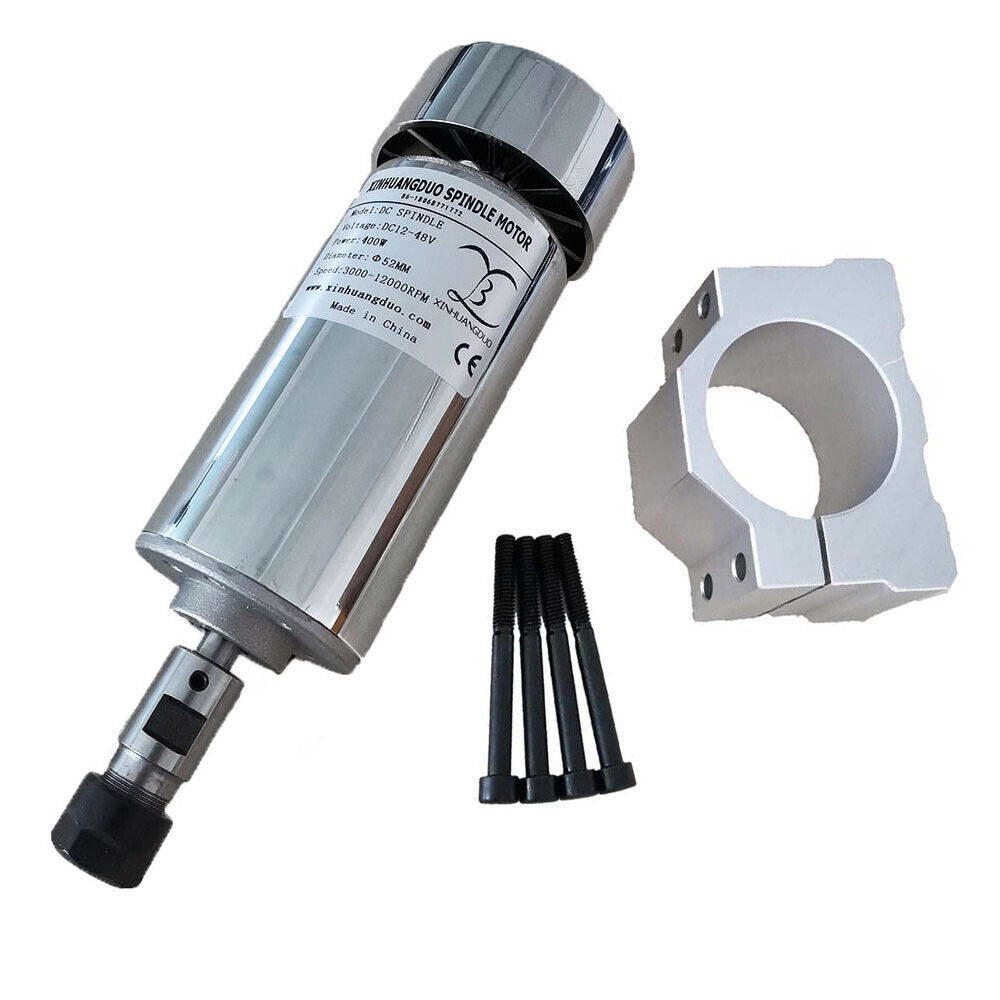

What's in the Box

• 1 × 400 W ER11 air-cooled spindle motor
• 1 × 52 mm CNC spindle holder

Tip: Use a DC supply that can deliver the current the spindle needs (about 8.3 A at 48 V for the full 400 W), ideally through a speed controller; the speed rises with the voltage. Tighten the ER11 nut with the proper spanner and use the collet that matches your bit's shank.
