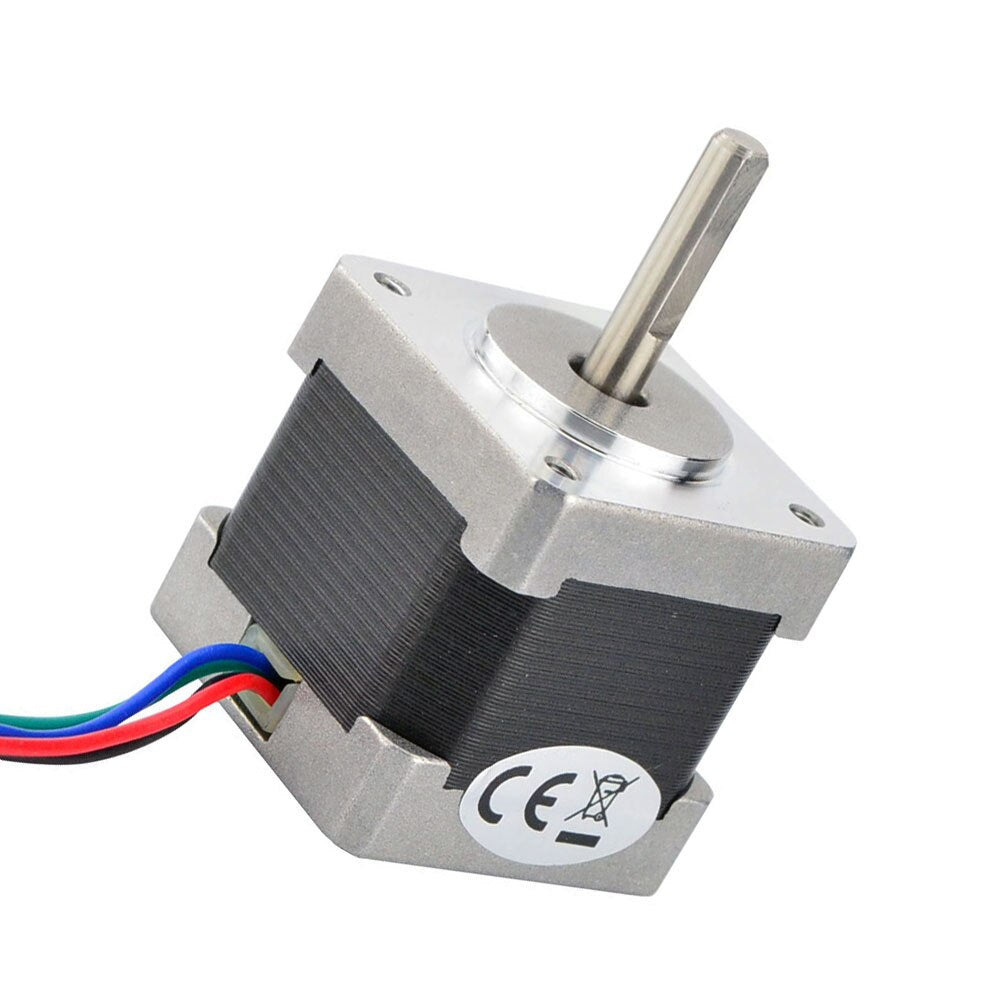

Stepper Motor 2-Phase 1.8 deg 1.0A 42BYGH401

The Stepper Motor 2-Phase 1.8 deg 1.0A (model 42BYGH401) is a 2-phase hybrid stepper motor with a 42 mm, NEMA 17 size frame, the most common size for desktop machines. It moves in precise 1.8° steps, 200 full steps per revolution, at a rated current of 1.0 A per phase, so it runs comfortably on popular drivers such as the A4988, DRV8825 and TMC2209 in 3D printers, CNC machines, laser engravers and robots.

Stepper Motor 2-Phase 1.8 deg 1.0A Specifications

• Model: 42BYGH401
• Type: 2-phase hybrid stepper motor
• Frame: 42 mm square (NEMA 17 size)
• Step angle: 1.8° (200 full steps per revolution)
• Rated current: 1.0 A per phase
• Mounting: 4 × M3 holes, 31 mm spacing (standard NEMA 17)

Stepper Motor 2-Phase 1.8 deg 1.0A Applications

• 3D printer axes and extruders
• CNC routers, laser engravers and pen plotters
• Camera sliders, turntables and robot arms
• Arduino projects with a CNC shield and A4988 drivers

What's in the Box

• 1 × 42BYGH401 stepper motor

Tip: Set the driver's current limit to 1.0 A or a little lower; at this current a small heatsink on an A4988 driver is still a good idea. Use microstepping for smoother motion, find the two coil pairs with a multimeter before wiring, and never plug or unplug the motor while the driver is powered.
