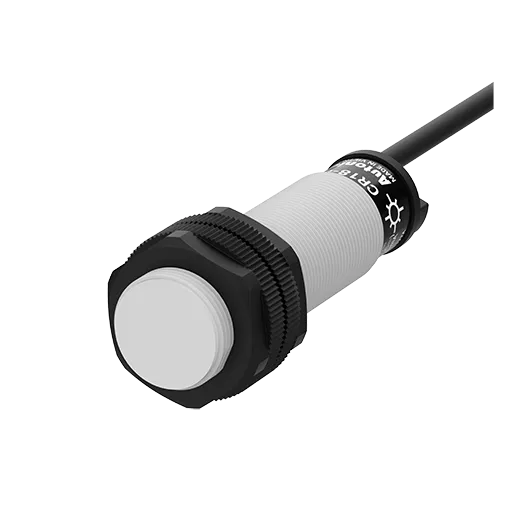

Proximity Switch CR18-8DP

The Autonics Proximity Switch CR18-8DP is an M18 capacitive proximity sensor that detects metal and non-metal objects, including plastic, wood, glass, paper, liquids and powders, at up to 8 mm. It has a PNP normally open output, runs on 12–24 VDC, and has a sensitivity potentiometer so you can tune it to the material you need to detect, even through the wall of a non-metal tank or hopper.

Proximity Switch CR18-8DP Specifications

• Brand: Autonics (CR series)
• Sensor type: Capacitive, cylindrical M18 × 1 thread
• Sensing distance: 8 mm (adjustable)
• Output: PNP normally open, max 200 mA
• Supply voltage: 12–24 VDC (operating range 10–30 VDC)
• Current consumption: Max 15 mA
• Response frequency: 50 Hz
• Sensitivity adjustment: Potentiometer
• Indicator: Red operation LED
• Protection: Reverse polarity and surge protection, IP66
• Operating temperature: −25 to 70 °C
• Cable: 3-wire, 2 m

CR18-8DP Applications

• Level detection of liquids, grain and powders in tanks and hoppers
• Detecting plastic, glass, wood and paper on production lines
• Counting non-metal parts on conveyors
• PLC inputs on packaging and filling machines

What's in the Box

• 1 × Autonics CR18-8DP capacitive proximity sensor

Tip: Set the sensitivity with the potentiometer for your target material: find the points where the output switches on and off with no target present, then set it midway between them. Keep the sensing face clean and dry, since moisture build-up can cause false triggering.
