Stroke Length 500MM 7mm/S 1000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

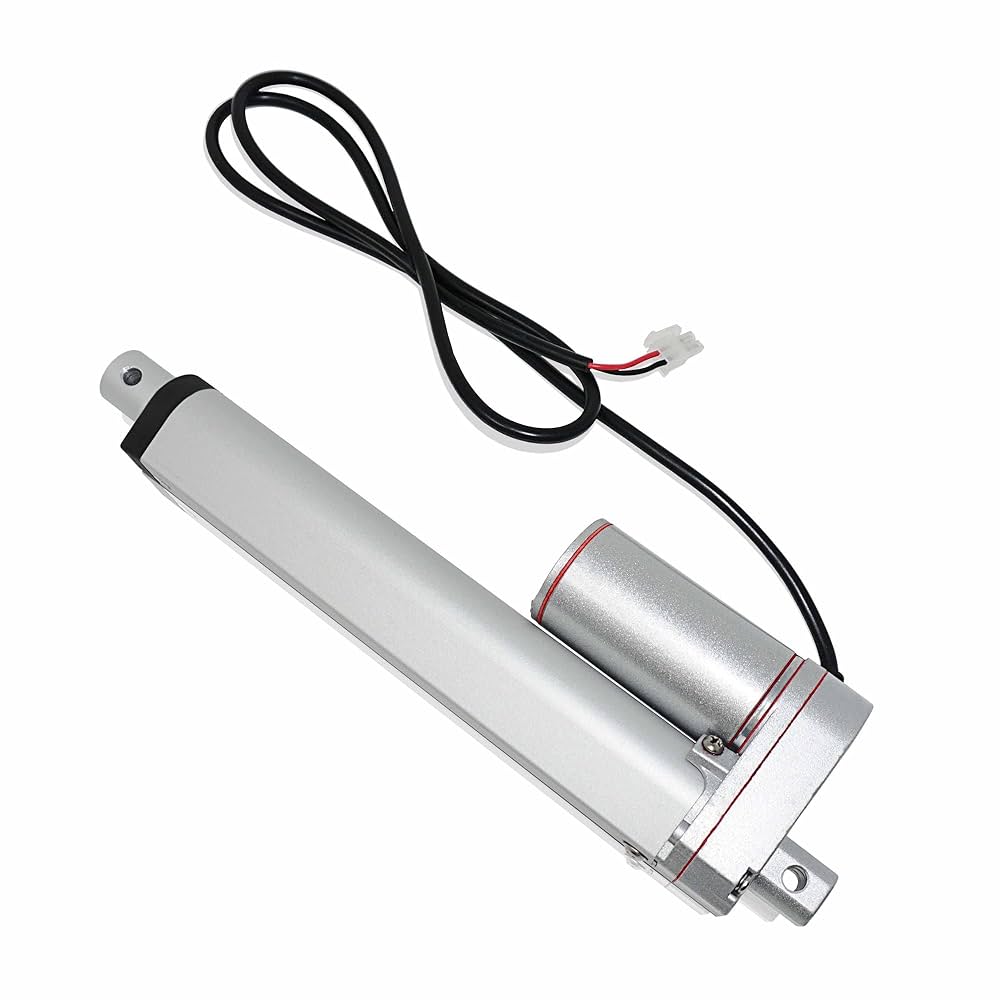

The Electric Linear Actuator (electric putter) is a 12 V DC motor-driven push rod with a 500 mm stroke and a force of 1000 N. It turns the rotation of a DC motor into straight-line motion, extending and retracting the rod at about 7 mm/s, which makes it suitable for automatically opening and closing doors, windows, hatches and other heavy moving parts.

Electric Linear Actuator Specifications

• Supply voltage: 12 V DC
• Stroke length: 500 mm
• Force: 1000 N (about 100 kgf)
• Speed: 7 mm/s, so a full 500 mm stroke takes about 71 seconds
• Motion: linear push and pull; the direction reverses when the supply polarity is reversed

Electric Linear Actuator Applications

• Automatic door and window openers
• Greenhouse vents and roof hatches
• Adjustable beds, desks and TV lifts
• Solar panel tilt adjustment
• Robotics, automation and agricultural machinery

What's in the Box

• 1 × 12 V electric linear actuator, 500 mm stroke

Tip: To move it both ways, swap the polarity with a DPDT switch, two relays or a motor driver rated for the actuator's current. Use a 12 V supply that can deliver the current needed at full load, and mount the actuator so the force acts along the rod, not sideways.
