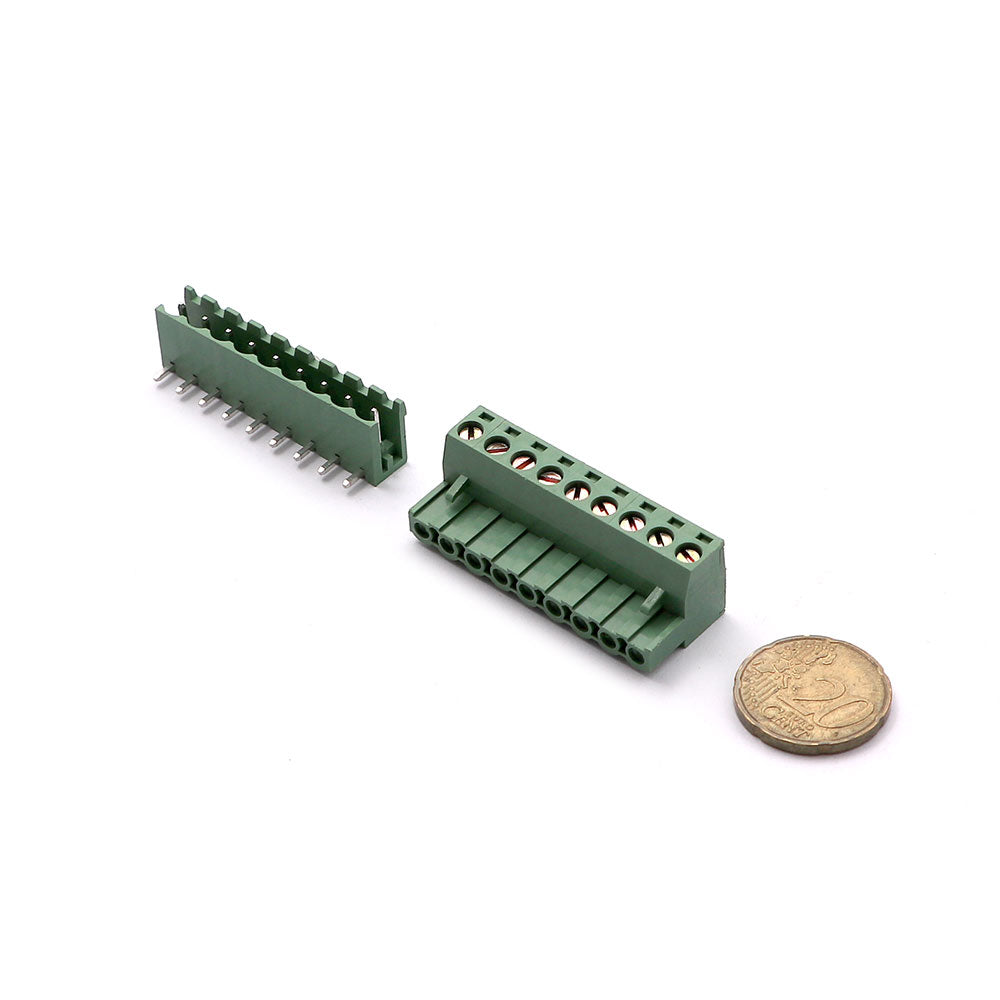

Terminal Set 2EDKJ 5.08mm 9-Pin

The Terminal Set 2EDKJ 5.08mm 9-Pin is a pluggable terminal block set with 9 positions on a 5.08 mm pitch. The plug part takes your wires under screw clamps and pushes into a matching header soldered to the PCB, so a board can be unplugged from its wiring in seconds for testing, repair or replacement. Pluggable terminals like this are widely used in control panels, power supplies, automation boards and custom electronics.

Terminal Set 2EDKJ 5.08mm 9-Pin Specifications

• Type: pluggable (two-part) terminal block set
• Positions: 9
• Pitch: 5.08 mm (0.2 in)
• Parts: screw terminal plug for the wires plus a PCB-mount header
• Wire connection: screw clamp
• Mounting: the header solders into through-holes on a PCB

Terminal Set 2EDKJ 5.08mm 9-Pin Applications

• Removable wiring for PLC, relay and automation boards
• Power and signal connections on custom PCBs
• Sensor and actuator cabling in control panels
• Prototypes that need to be connected and disconnected often

What's in the Box

• 1 × 9-pin 5.08 mm pluggable terminal set (plug and header)

Tip: Check that your PCB footprint uses a 5.08 mm pitch, because 3.81 mm and 5.0 mm terminal blocks look similar but will not fit. Strip only as much insulation as the clamp needs, tighten the screws firmly and use ferrules on stranded wire for a secure connection.
