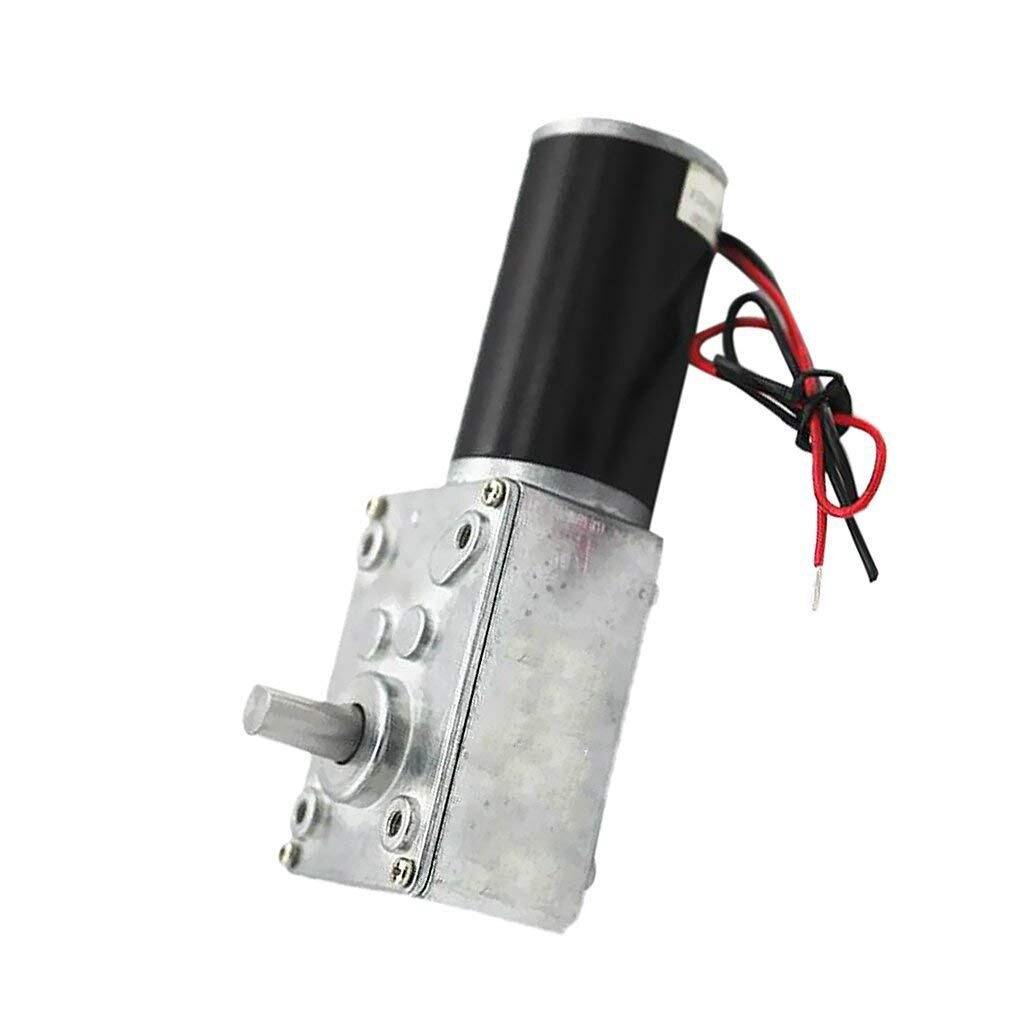

Worm Gear Motor 12V JSX100-370

The Worm Gear Motor 12V JSX100-370 is a 12 V DC geared motor fitted with a worm gearbox. The worm drive turns the output shaft at a right angle to the motor and reduces the speed a lot, giving high torque in a compact shape. Worm gear motors are a popular choice for robot arms, lifting mechanisms, small openers and other slow, strong movements in robotics and automation projects.

Worm Gear Motor 12V JSX100-370 Specifications

• Model: JSX100-370
• Rated voltage: 12 V DC
• Motor: brushed DC motor, 370 size
• Gearbox: worm gear reduction with right-angle output shaft
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a DC motor driver

Worm Gear Motor 12V JSX100-370 Applications

• Robot arm joints and pan-tilt mechanisms
• Small winches, lifts and lifting platforms
• Curtain, window and small door openers
• Turntables, rotating displays and slow conveyors
• Automation and engineering student projects

What's in the Box

• 1 × 12 V worm gear motor JSX100-370

Tip: Power the motor through a driver such as an L298N or BTS7960 instead of an Arduino pin, and choose a driver rated above the motor's stall current. Worm gearboxes are hard to turn from the output side, which helps the shaft hold its position when the power is off.
