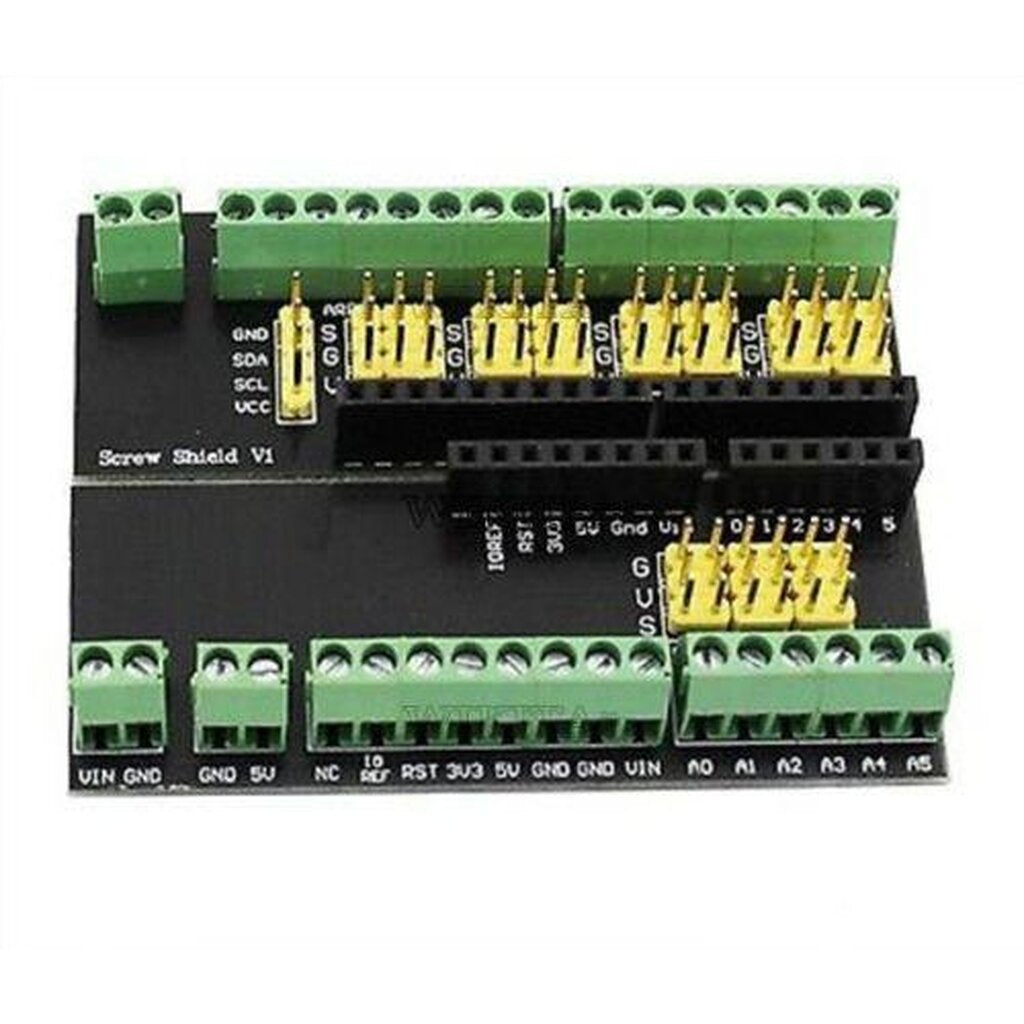

XD-216 Screwshield Screw Shield V1 Expansion Board

The XD-216 Screwshield Screw Shield is an expansion board for the Arduino Uno that brings the board's I/O pins out to screw terminals. Instead of loose jumper wires, you clamp stripped wires firmly in place, which makes it a good choice for projects that move, vibrate or stay installed for a long time. It also adds 3-pin headers for sensors and servos.

XD-216 Screwshield Screw Shield Specifications

• Compatible board: Arduino Uno R3 and boards with the same header layout
• I/O access: Arduino I/O pins broken out to screw terminals
• Sensor headers: 3-pin male headers for sensors and servos
• Power: power pins extended next to the signal pins
• Model: XD-216 Screw Shield V1

XD-216 Screwshield Screw Shield Applications

• Permanent Arduino installations and control boxes
• Robots and vehicles where wires must not shake loose
• Connecting thicker wires that do not fit Dupont headers
• Classroom setups that are wired and rewired often

What's in the Box

• 1 × XD-216 Screw Shield V1 expansion board

Tip: Strip about 5 mm of insulation, insert the bare wire fully and tighten the screw firmly without over-tightening. Double-check the pin labels on the board before powering up.
