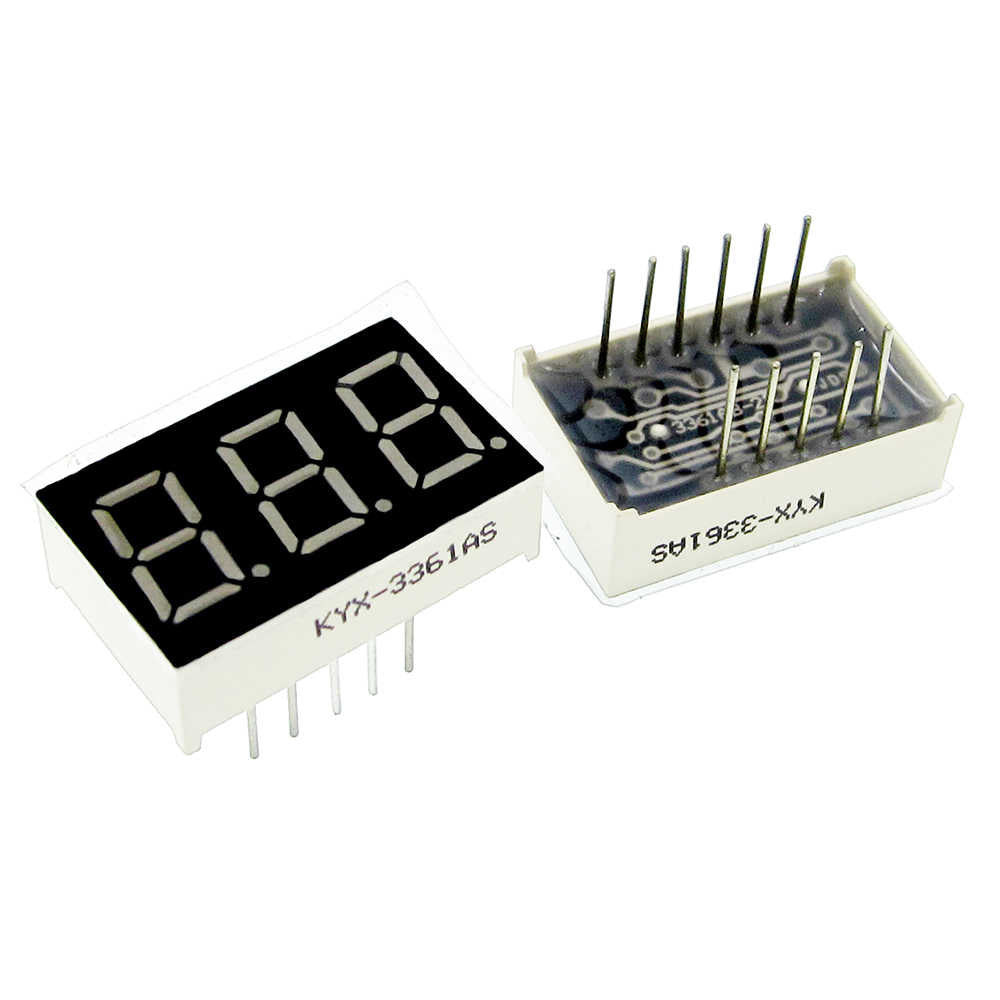

0.56 inch Red 3 Digit 7 Segment LED Display

Part no. 10020760

$1.00
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The 0.56 inch red 3 Digit 7 Segment LED Display shows three numbers side by side, each made of seven LED segments plus a decimal point. With a digit height of 0.56 inch (about 14 mm), it is easy to read from a distance and is a common choice for voltmeters, counters, timers, thermometers and scoreboards built with Arduino or other microcontrollers.

3 Digit 7 Segment LED Display Specifications

  • Digits: 3
  • Digit height: 0.56 inch (about 14.2 mm)
  • Colour: red
  • Segments: 7 per digit plus a decimal point
  • Drive: multiplexed, with shared segment pins and one common pin per digit
  • Mounting: through-hole

3 Digit 7 Segment LED Display Applications

  • Digital voltmeters and ammeters
  • Counters, timers and countdown clocks
  • Thermometers and other sensor readouts
  • Scoreboards and number displays
  • Learning multiplexing with Arduino

What's in the Box

  • 1 × 0.56 inch red 3-digit 7-segment LED display

Tip: Check whether your display is common cathode or common anode before wiring, and give each segment its own resistor (220–330 Ω at 5 V). To show different numbers on each digit, switch the digit pins on one at a time very quickly, or use a library such as SevSeg or a driver chip such as the MAX7219.
