Drone Chassis F450

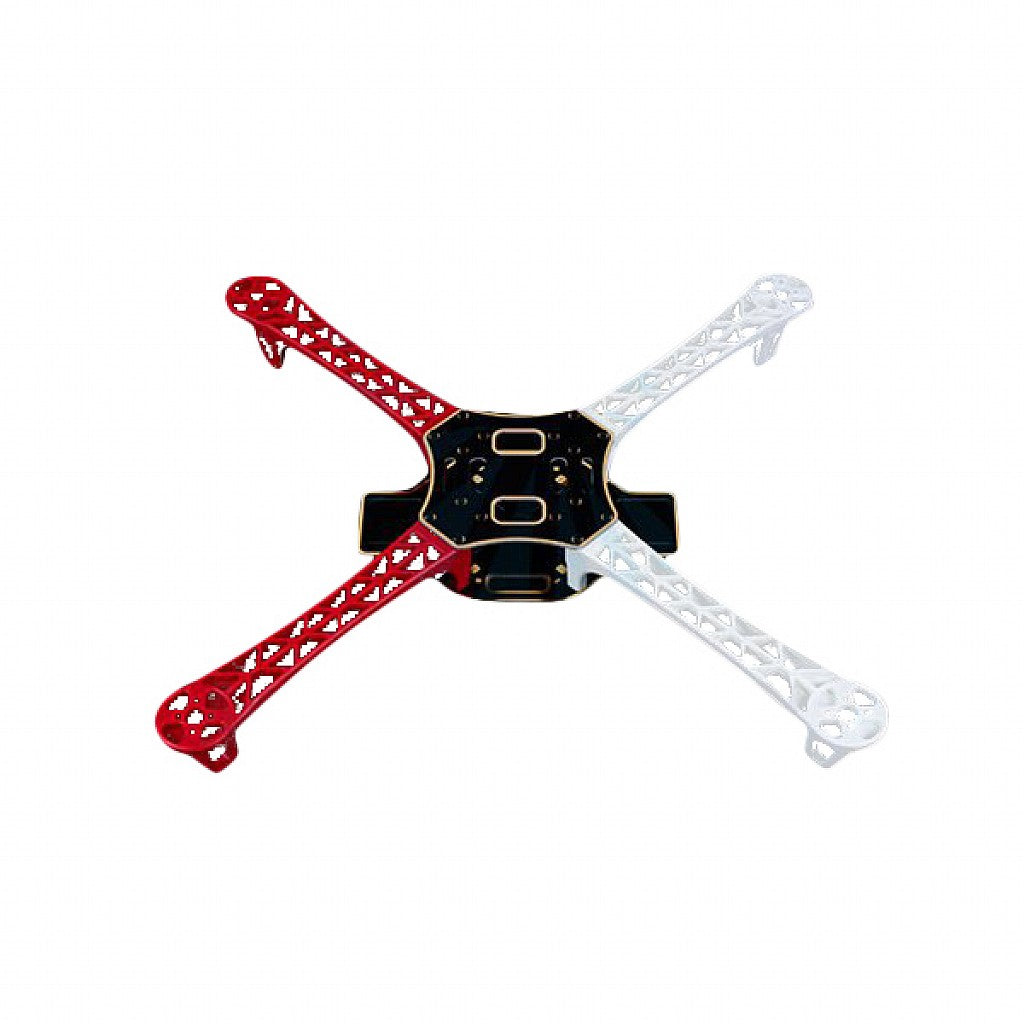

The Drone Chassis F450 is a 450 mm quadcopter frame for building your own drone. The F450 layout uses a stack of centre plates with four arms that carry the motors, leaving room on the plates for a flight controller, receiver, battery and extras such as a GPS module or camera. It is one of the most popular frames for learning how to build, tune and fly multirotors.

Drone Chassis F450 Specifications

• Frame type: F450 quadcopter, 4 arms
• Wheelbase: 450 mm (diagonal, motor to motor)
• Motor mounting: one motor at the end of each arm
• Electronics: flight controller, receiver and battery mount on the centre plates

Drone Chassis F450 Applications

• DIY quadcopter and drone builds
• Mounting flight controllers, receivers, GPS modules and cameras
• University and school robotics and drone projects
• Replacement frame for existing F450 builds
• Aerial photography and FPV experiments

What's in the Box

• 1 × F450 quadcopter frame (centre plates and 4 arms)

Tip: A common F450 setup uses four 2212 brushless motors of about 920–1000 KV, 30 A ESCs, 10-inch propellers such as 1045 and a 3S LiPo battery. Check every screw and arm for tightness before the first flight, and remove the propellers while you set up the flight controller.
