Fan 5x5cm 12V 0.11A

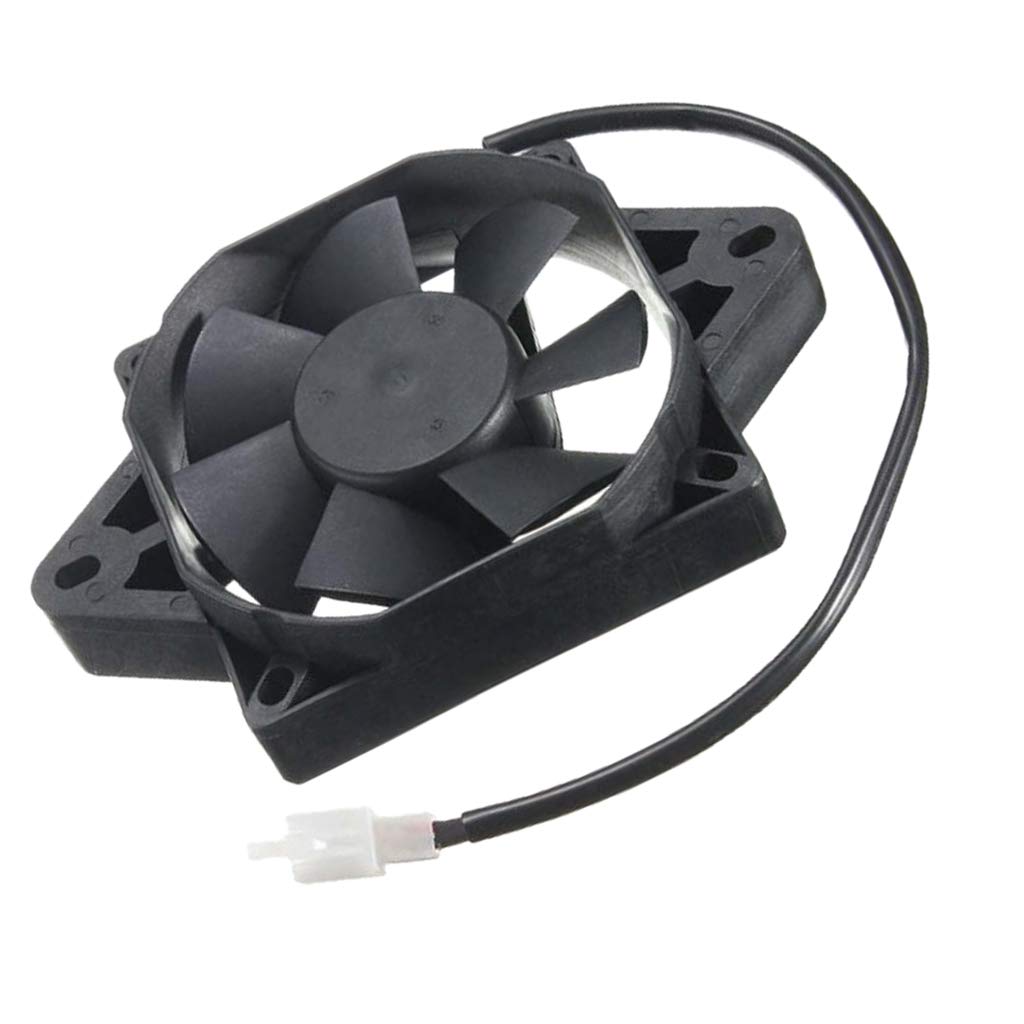

The Fan 5x5cm 12V 0.11A is a 50 × 50 mm DC cooling fan that runs from a 12 V supply and draws a rated current of 0.11 A. It moves air across heat sinks and hot components to keep them at safe temperatures, and its compact square frame fits 3D printers, project enclosures, power supplies, amplifiers and chargers.

Fan 5x5cm 12V 0.11A Specifications

• Size: 50 × 50 mm (5 × 5 cm) square frame
• Rated voltage: 12 V DC
• Rated current: 0.11 A
• Power: about 1.3 W (12 V × 0.11 A)
• Type: axial cooling fan with a brushless DC motor
• Mounting: 4 corner holes for screws
• Connection: wire leads to the 12 V supply

Fan 5x5cm 12V 0.11A Applications

• Cooling 3D printer hotends, extruders and printed parts
• Ventilating electronics enclosures and control boxes
• Cooling heat sinks on regulators, MOSFETs and motor drivers
• Airflow for small power supplies, amplifiers and chargers
• CNC controller boxes and stepper driver boards

What's in the Box

• 1 × 50 × 50 mm 12 V DC fan

Tip: Check the polarity: the positive lead (usually red) goes to +12 V and the negative lead (usually black) to ground, because a DC fan will not spin the wrong way round. The fan draws about 110 mA, more than a microcontroller pin can supply, so switch it with a transistor or MOSFET and add a flyback diode across the fan.
