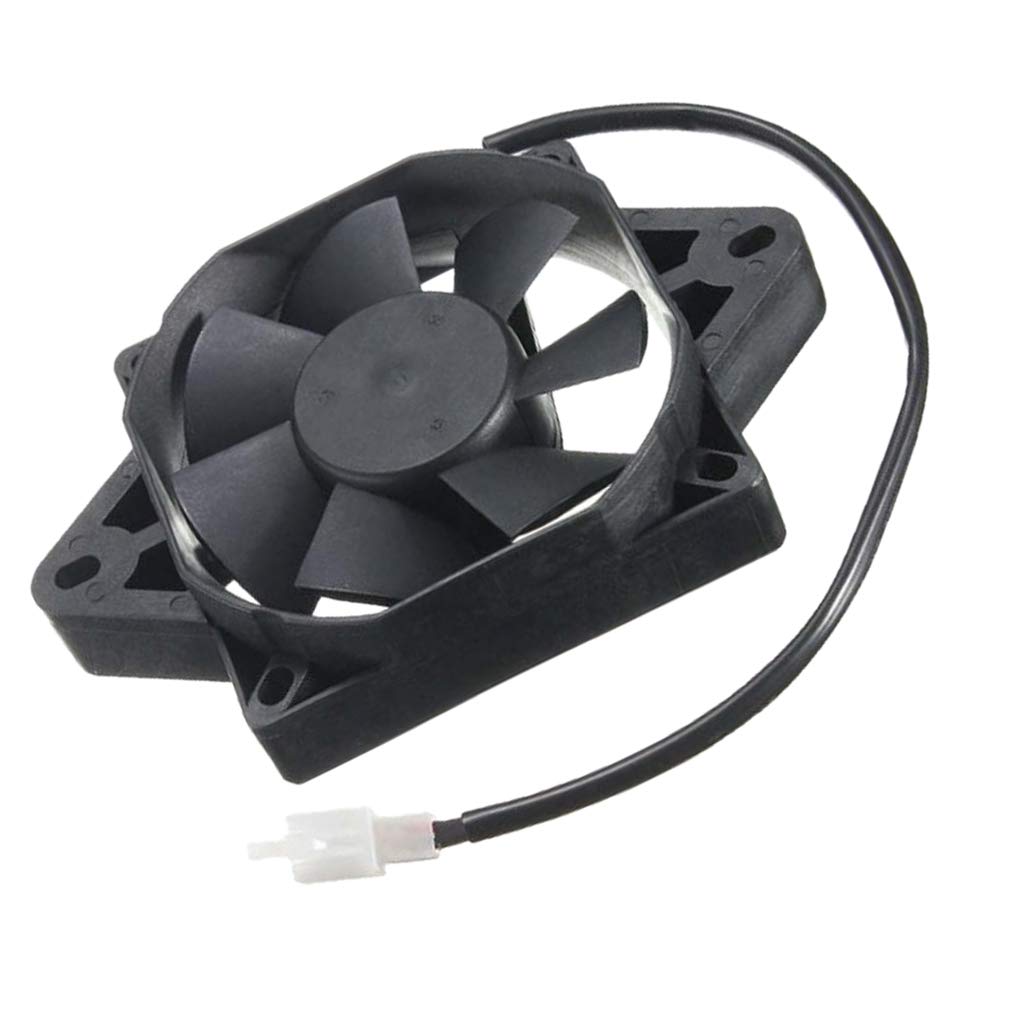

Fan 5x5cm 5V 0.12A

The Fan 5x5cm 5V 0.12A is a 50 × 50 mm DC cooling fan rated at 5 V and 0.12 A. With a power draw of only about 0.6 W, it can run from the same 5 V supply as a Raspberry Pi, an Arduino project or a USB power source. It moves air across heat sinks and warm components, and its small square frame fits project boxes, enclosures and 3D printer electronics.

Fan 5x5cm 5V 0.12A Specifications

• Size: 50 × 50 mm (5 × 5 cm) square frame
• Rated voltage: 5 V DC
• Rated current: 0.12 A (120 mA)
• Power: about 0.6 W
• Type: axial cooling fan with a brushless DC motor
• Mounting: 4 corner holes for screws

Fan 5x5cm 5V 0.12A Applications

• Cooling Raspberry Pi and other single-board computer cases
• Ventilating small electronics enclosures and junction boxes
• Cooling heat sinks on regulators, MOSFETs and stepper drivers
• Airflow for 3D printer boards and CNC controllers
• USB-powered and battery-powered projects that need cooling

What's in the Box

• 1 × 50 × 50 mm 5 V 0.12 A DC fan

Tip: Connect the positive lead (usually red) to +5 V and the negative lead (usually black) to ground. At 120 mA the fan needs more current than a microcontroller pin can give, so switch it with a transistor such as the 2N2222 or a logic-level MOSFET, and fit a diode across the fan.
