Beirut ElectroCity

Inductor 220uH

Part no. 10340134

$0.50
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

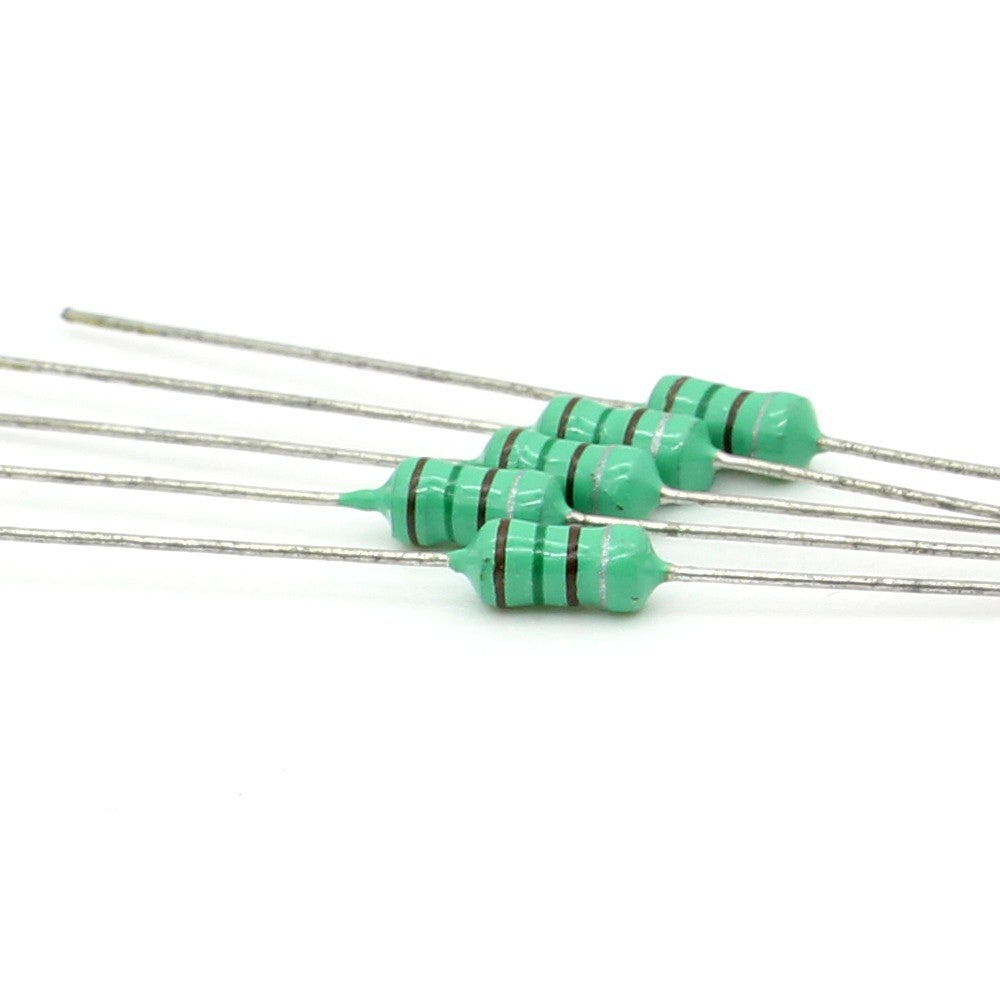

The Inductor 220uH is a fixed inductor with an inductance of 220 µH (microhenry). An inductor stores energy in a magnetic field and resists fast changes in current, so it is used to smooth power rails, block high-frequency noise and build filters, chokes and switching regulators. 220 µH is a standard value from the E6 series, found in many filter and DC-DC converter circuits.

Inductor 220uH Specifications

  • Inductance: 220 µH (0.22 mH)
  • Type: fixed inductor (coil), passive component
  • Polarity: none, can be fitted either way round
  • Behaviour: passes DC and low frequencies, opposes high-frequency signals
  • Reactance: about 138 Ω at 100 kHz (XL = 2πfL)

Inductor 220uH Applications

  • LC low-pass and band-pass filters
  • Buck and boost DC-DC converter circuits
  • Filtering noise on power supply and audio lines
  • RF chokes and oscillator circuits
  • Electronics lessons on inductance and resonance

What's in the Box

  • 1 × 220 µH inductor

Tip: Choose an inductor whose current rating is above the peak current of your circuit, or it will saturate and heat up. For an LC filter the cut-off frequency is f = 1 / (2π√(LC)); with 220 µH and 100 µF it is about 1.1 kHz.
